Suitable for: Dadant honey super, Dadant shallow honey super, DNM shallow / EHM shallow, Langstroth honey super, Schweizer Stock honey super, Zander shallow. Max. frame size: 17.7 x 48 cm.

Art. 4512-CH, 12W self-turning extractor CH, double-pockets, fully electric, drum 76
Pocket size: 18.5 x 44 x 5.3 cm
Drive: Motor drive 180 W / 230 V with fully automatic control
Inner diameter of the drum: 76 cm

Innovative self-turning honey extractor with double pockets – designed to extract a large number of low frames on a small diameter.
Specifically developed for CH thick comb (wide comb) frames.

12-frame self-turning honey extractor with 180 W / 230 V motor drive, fully automatic control and a safety switch that automatically stops the motor when the lid is opened. The frame pockets in the extractor are double with a plate between them over which the honey drains. State-of-the-art engineering allowed us to develop an innovative extractor floor design.

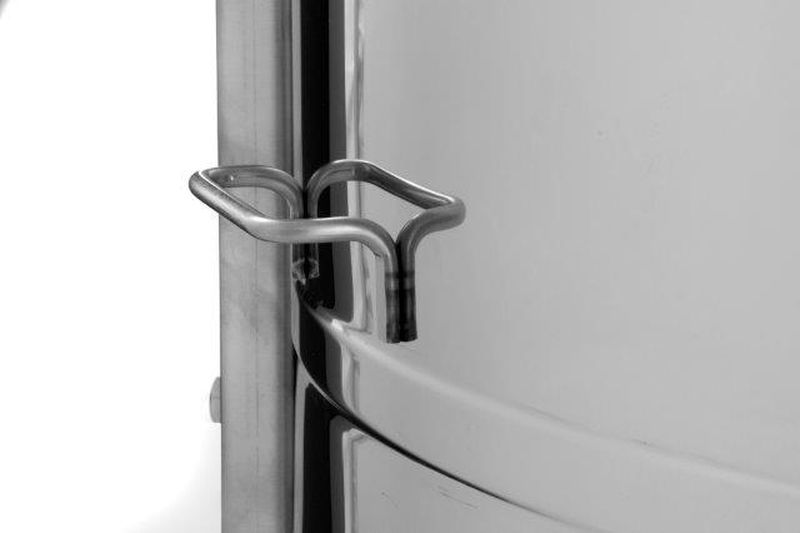

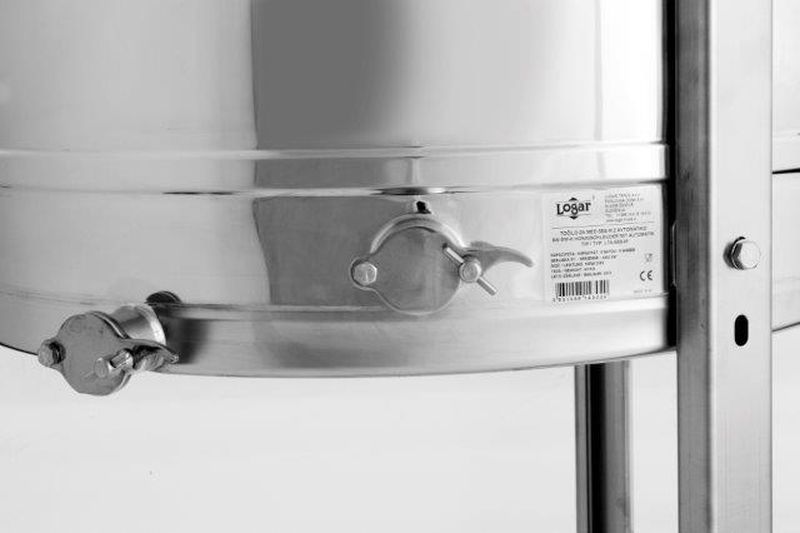

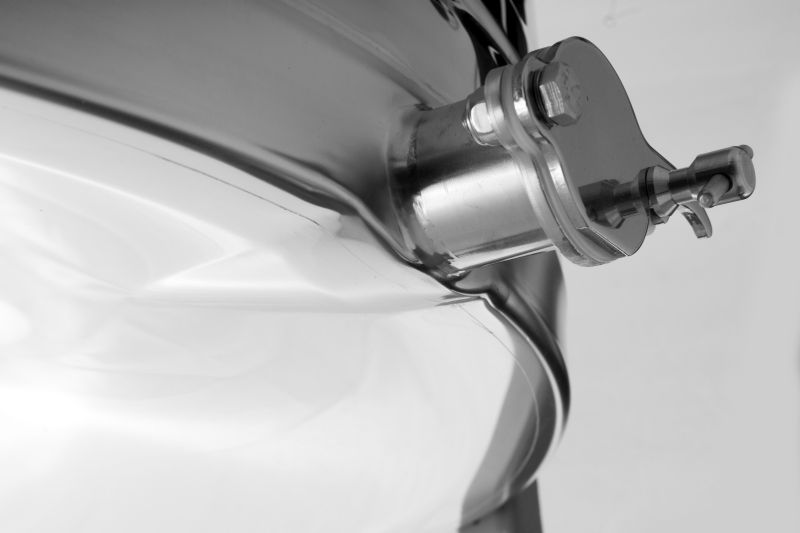

The bottom of the drum is seamlessly welded and sloped toward the outlet. The stainless steel squeeze valve is welded at the lowest possible point to ensure all honey can drain from the extractor. All parts that come into contact with honey are made from food-grade materials. The lid is made of transparent acrylic. A special construction of the feet provides the extractor with stable support.

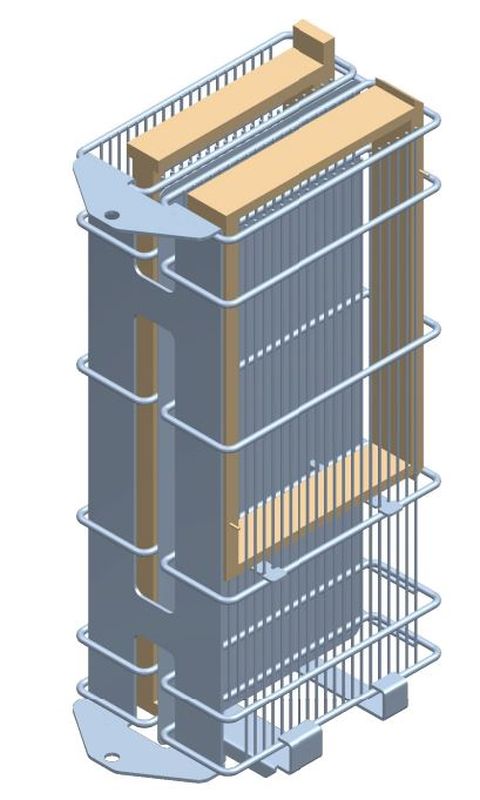

The frame pockets are made from vertical grille bars of appropriate density to prevent damage to the frames during extraction. They are connected by a special mechanism. The pocket design prevents honey from pooling inside the pockets during extraction, so the frames are dry after spinning.

Allows extraction of 12 frames up to a height of 17.7 cm and a top-bar length of 48 cm and is specifically adapted for CH frames. The cassette is additionally equipped with removable spacers to reduce the cassette depth, making it easier to insert and remove low frames.

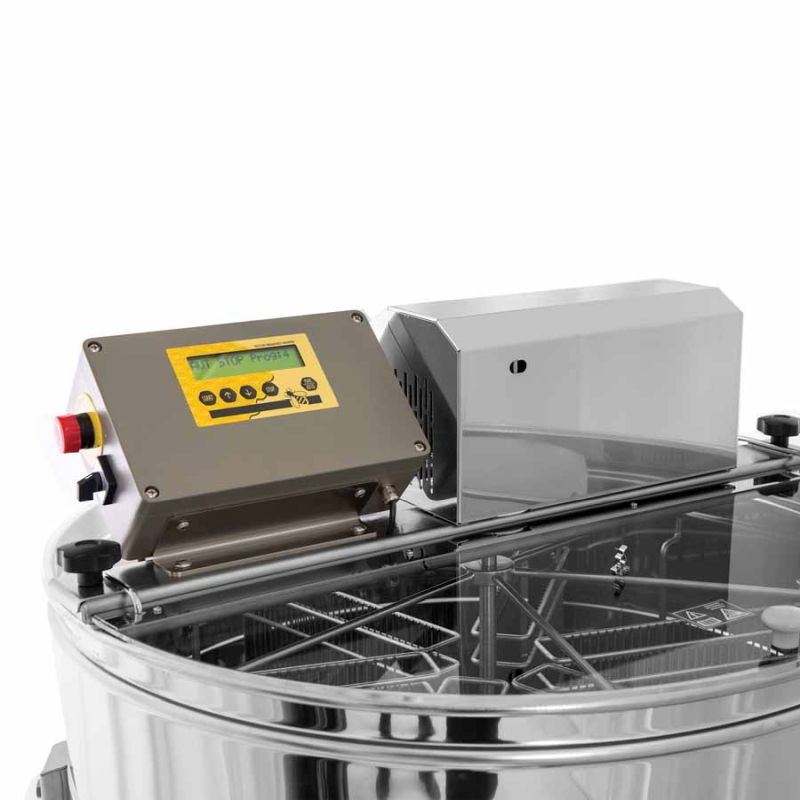

The fully automatic control carries out the entire extraction process independently, allowing you to attend to other tasks in the meantime. Operation is simple via a membrane keypad. You can set and store up to 8 different programs. Each program can be configured with 8 different times, directions and speeds. Basic extraction programs are pre-set but can be changed, extended and re-saved at any time.

Compact design, quiet operation and reliable performance.

Warranty: 2 years
Type: LTA 12SSD

Optional accessories:
- Art. 7754, rubber feet for extractor with M8 screw
Attaching rubber pads to the extractor feet reduces slipping.
- Art. 4627, voltage converter 12V DC -> 230V AC, 600W
If 230 V mains power is not available, the converter allows the extractor to be powered from a 12 V battery/accumulator.
- Replacement tangential basket with additional central axle for extracting large frames up to 30 cm in height.

Technical data:

• Drive: fully automatic program control with 180 W / 230 V motor (fully automatic control with safety switch)
• Number of frames (full / shallow): 0 / 12
• Cassette size (pocket size): 18.5 x 44 x 5.3 cm
• Maximum frame size: 17.7 x 48 cm
• Suitable for: Dadant honey super, Dadant shallow honey super, DNM shallow / EHM shallow, Langstroth honey super, Schweizer Stock honey super, Zander shallow
• Drum diameter (inside / outside): 76 / 79 cm
• Bottom: seamlessly welded and sloped towards the squeeze valve; honey valve welded at the lowest possible point
• Extractor type: self-turning extractor
• Material: stainless steel W.Nr. 1.4301 / AISI 304
• Type: LTA 12SSD
• Made in: EU (Slovenia)
• Warranty: 2 years
