Suitable for: Dadant brood chamber, Dadant honey chamber, Type B and ZaDant. Maximum frame size: 28.6 x 48 cm (H x top-bar length).

Pocket size: 29 x 40 x 4.5 cm
Drive: 180 W / 230 V motor drive with fully automatic control
Inner diameter of the tub: 76 cm

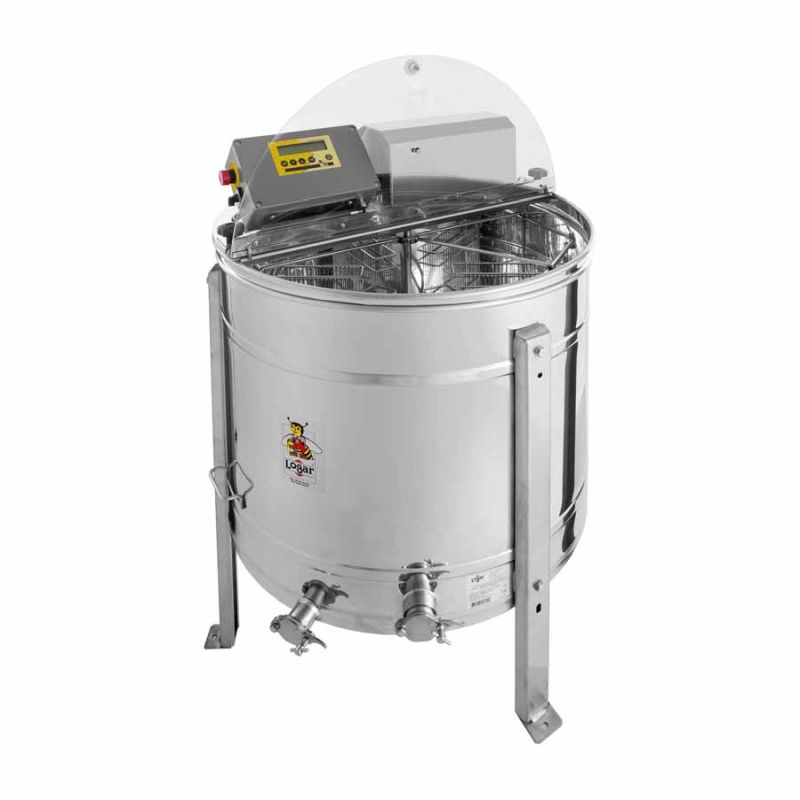

4-frame self-turning honey extractor with 180 W / 230 V motor drive and fully automatic control. It features an integrated safety switch that automatically stops the motor when the lid is opened. State-of-the-art engineering has allowed us to create an innovative extractor bottom. The tub is seam-welded and tilted toward the outlet. The stainless pinch valve is installed at the lowest possible point so that all honey can flow out of the extractor. All parts that come into contact with honey are made from food-grade materials. The lid is made of transparent acrylic. This extractor can accommodate larger frames up to a height of 28.6 cm. For this reason, the lid is opened over the motor using special hinges.

The comb pockets are made from vertical wire rods with appropriate spacing so the frames are not damaged during extraction. They are connected by a special mechanism. The comb pockets prevent honey from pooling inside them during spinning, so the frames are dry after extraction.

Allows extraction of 4 frames up to a height of 28.6 cm and a top-bar length of 48 cm.

Fully automatic control allows the entire extraction process to run independently, so you can attend to other tasks while the extractor works. Operation is simple via a membrane keypad and a digital two-line LCD display. You can set and store up to 8 different programs. Each program can be configured with up to 8 different times, directions and speeds. Basic extraction programs are pre-set but can be changed, expanded and re-saved at any time.

Compact design, quiet operation and reliable performance.

Warranty: 2 years

Optional accessories:
• If 230 V mains power is not available, the voltage converter 12V DC-230V AC, 600 W (Art. No. 4627) allows you to operate the extractor using a 12 V battery/accumulator.
• Base heater for extractor Ø 76 cm incl. installation – our recommendation for faster honey flow from the extractor, quicker honey straining and easier cleaning of the extractor, Art. No. 7125
• Fitting rubber pads to the extractor's feet reduces slipping (Art. No. 7769).

Technical data:

• Type: LTA 4SS-V
• Material: Stainless steel W.No. 1.4301 / AISI 304
• Drive: Fully automatic program control with 180 W / 230 V motor and fully automatic controller
• Number of frames (full / shallow): 4 / 8
• Maximum frame size: 28.6 x 48 cm
• Cassette size: 29 x 40 x 4.5 cm
• Tub diameter (inner / outer): 76 / 79 cm
• Inner diameter of the tub: 76 cm
• Height of tub without / with drive unit: 73 / 93 cm
• Total height with feet / with drive unit: 112 / 132 cm
• Height from floor to honey tap: 39 cm

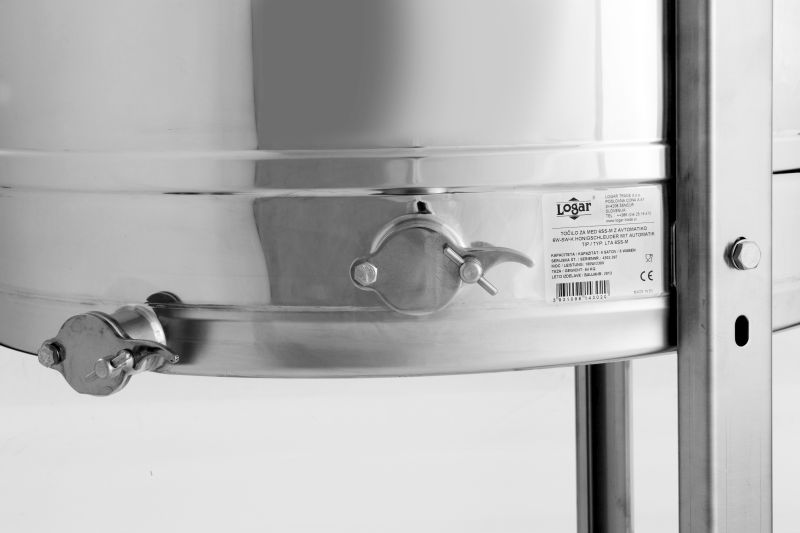

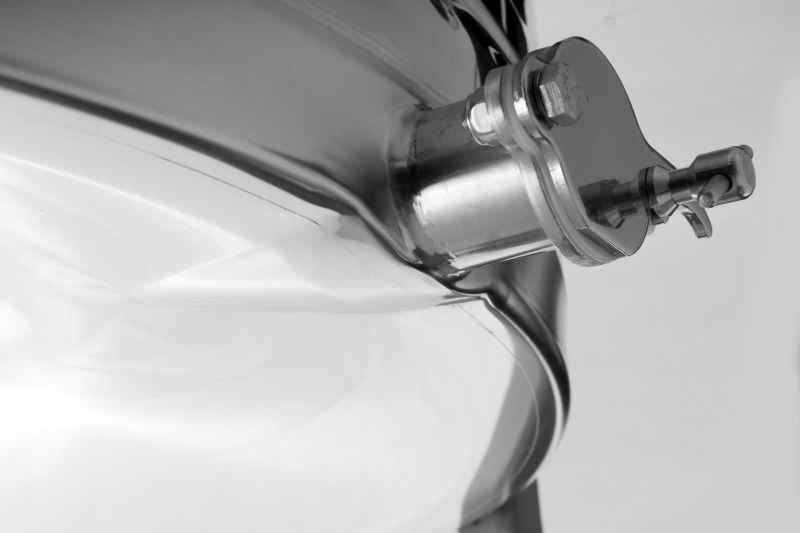

• Honey tap: welded at the lowest possible point; honey taps Ø: 1x 38 mm + 1x 42 mm
• Bottom: seam-welded and inclined toward the pinch valve
• Lid: transparent acrylic

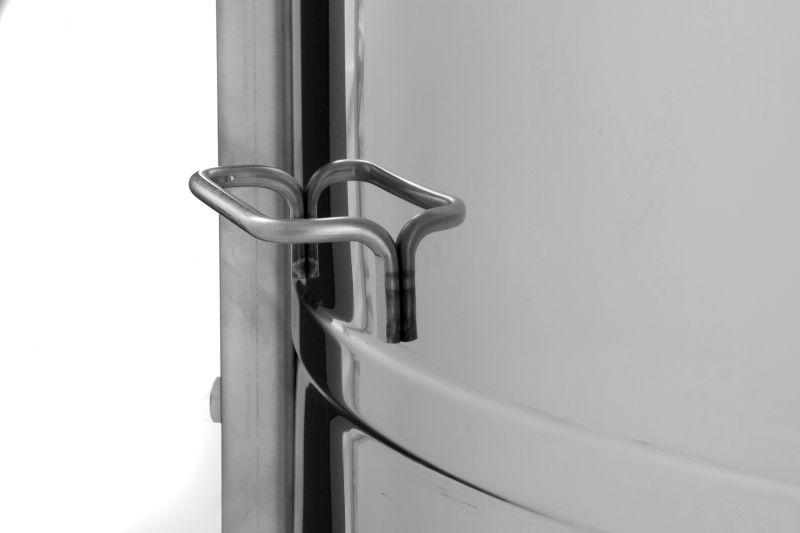

• Handles: two side handles
• Made in the EU (Slovenia)
• Warranty: 2 years
