Suitable for: Langstroth 1/1, DNM/EHM (including shallow), Langstroth super frames, Zander (including shallow) and up to 8 frames up to 11 cm high. Maximum frame size: 23 x 48 cm.

Cassette size: 24 x 40 x 4.5 cm
Drive: Motor 110 W / 230 V
Inner diameter of the drum: 63 cm

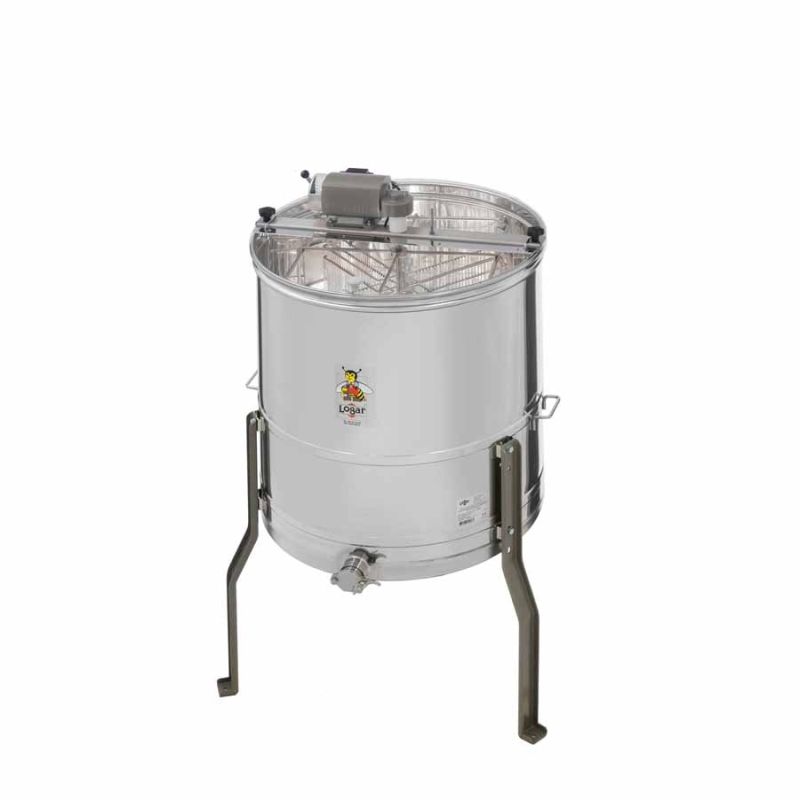

4-frame self-reversing honey extractor with 110 W / 230 V motor drive and an integrated safety switch that automatically stops the motor when the lid is opened. The control lever allows continuous speed adjustment from 0 to 280 rpm and selection of left- or right-hand rotation. State-of-the-art engineering has allowed an innovative design of the extractor bottom. The drum floor is seam-welded and sloped toward the outlet. The stainless steel pinch valve is welded at the lowest possible point so that all honey can drain from the extractor. All parts that come into contact with honey are made from food-grade materials. The lid is fitted with special hinges and is made of transparent acrylic to allow observation of the extraction process. The special foot construction provides reliable stability for the extractor.

The frame pockets are made from vertical grid bars with an optimized bar spacing to ensure that neither combs nor frames are damaged during extraction. They are connected to each other by a special mechanism. The frame pockets prevent honey from pooling inside them during extraction. As a result, the frames are completely dry after extraction!

Allows extraction of 4 frames up to a height of 23 cm and a top bar length of 48 cm.

Warranty: 1 year

Optional accessories:
• Fitting rubber feet (Art. No. 7754) to the extractor's legs reduces slipping.
• Bottom heater for extractor ø 63 cm including installation – our recommendation for faster honey drainage from the extractor, quicker filtering of honey and easier cleaning, Art. No. 7127.
• If 230 V is not available, the voltage inverter 12V DC–230V AC, 300 W (Art. No. 4626) allows operation of the extractor using a 12 V accumulator/battery.
• Art. No. P495.009, brackets for smaller frames (e.g. DNM/EHM size)

Technical data:

• Type: LTM 4SS – M
• Material: Stainless steel W.Nr. 1.4301 / AISI 304
• Drive: Motor 110 W / 230 V with integrated safety switch; stepless control 0–280 rpm; forward and reverse rotation
• Number of frames: 4 (standard) / 4 (shallow)
• Suitable for: Langstroth 1/1, DNM/EHM (including shallow), Langstroth super frames, Zander (including shallow) and up to 8 frames up to 11 cm high. Max. frame size: 23 x 48 cm
• Cassette size: 24 x 40 x 4.5 cm
• Drum diameter (inner/outer): 63 / 66 cm
• Heights: Drum height without/with drive: 70 / 82 cm; Total height with feet / with drive: 111 / 123 cm; Height from floor to honey tap: 40 cm

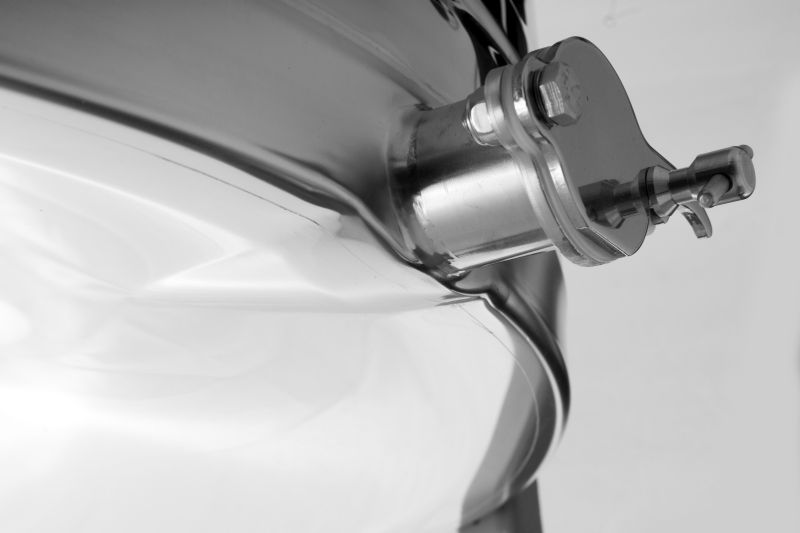

• Honey tap: welded at the lowest possible point; 1x Ø 38 mm
• Bottom: seam-welded and sloped toward the pinch valve

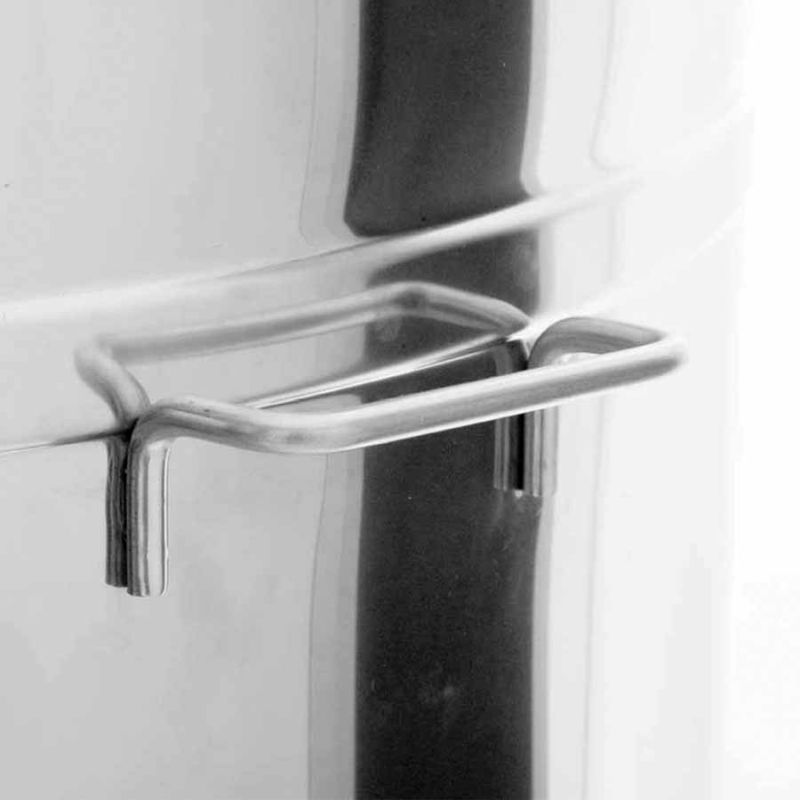

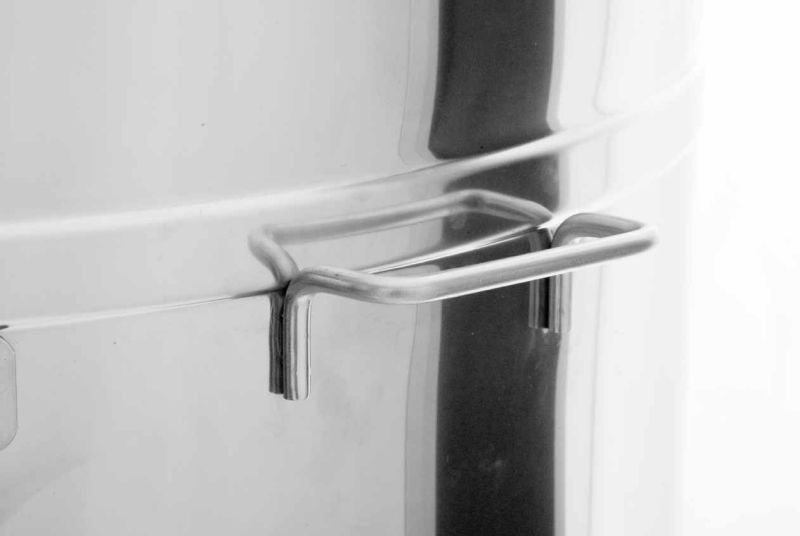

• Handles: two side handles
• Frame pockets: vertical grid bars with optimized bar spacing to protect combs and frames
• Made in EU (Slovenia)
• Warranty: 1 year
