Suitable for: Dadant Blatt (honey super), DNM shallow / EHM shallow, Langstroth honey super and Swiss Stock honey super. Maximum frame size: 17.7 x 48 cm (H x top-bar length) – specially adapted for CH frames.

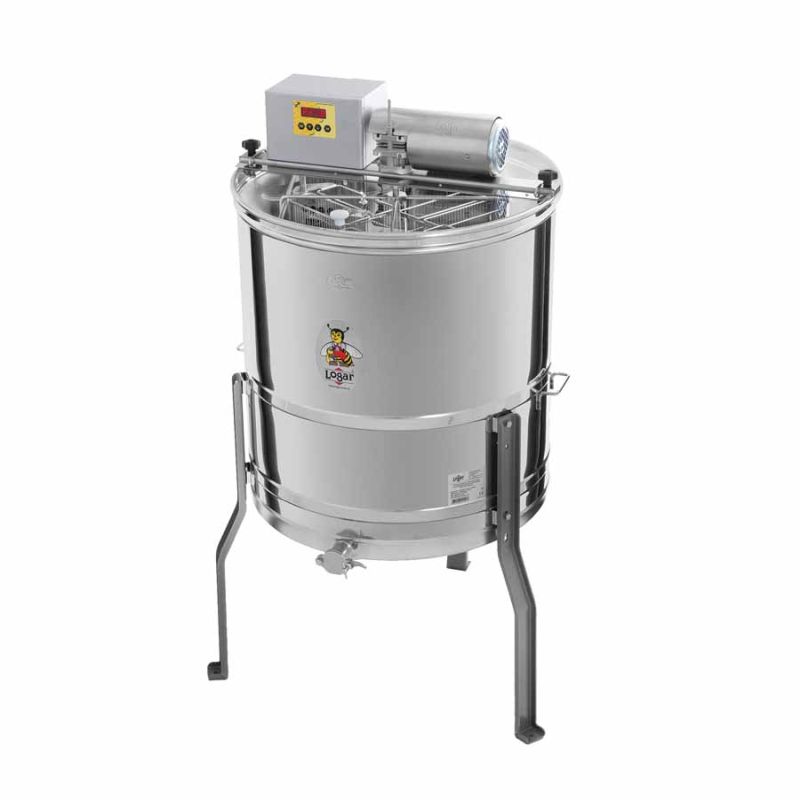

8-frame self-reversing honey extractor with 110 W / 230 V motor drive, fully automatic control and a safety switch that automatically stops the motor when the lid is opened. The honey pockets in the extractor are double; a sheet between them allows the honey to flow off. State-of-the-art engineering allowed us to develop an innovative extractor bottom. The tank bottom is seamless-welded and inclined toward the outlet. The stainless squeeze tap is welded at the lowest possible point so that all honey can flow out of the extractor. All parts that come into contact with honey are made of food-grade materials. The lid is made of transparent acrylic. A special stand design gives the extractor excellent stability.

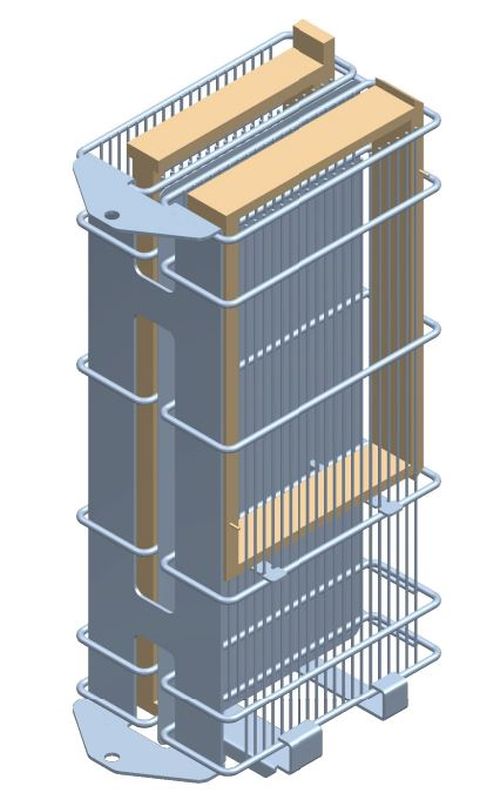

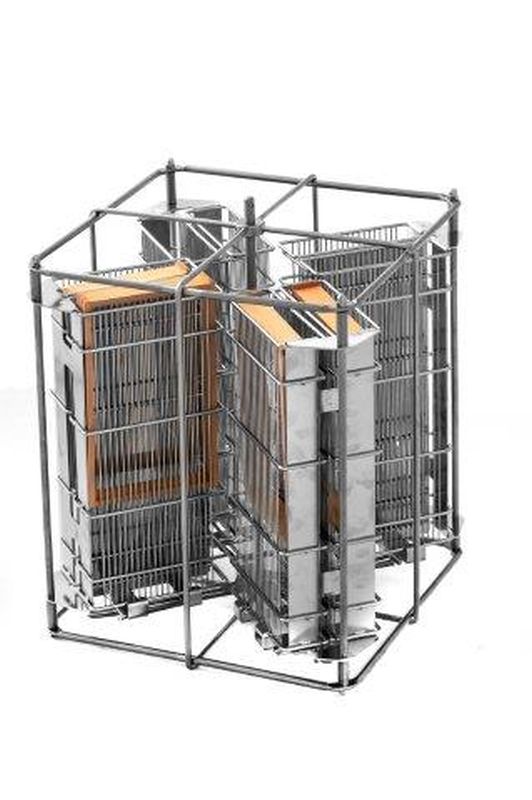

The frame pockets are made from vertical grid rods of appropriate density to prevent damage to the frames during spinning. They are connected to each other by a special mechanism. The pockets prevent honey from pooling inside them during extraction, so the frames are dry after spinning.

Allows extraction of 8 frames up to a height of 17.7 cm and a top-bar length of 48 cm. Specially adapted for CH frames.

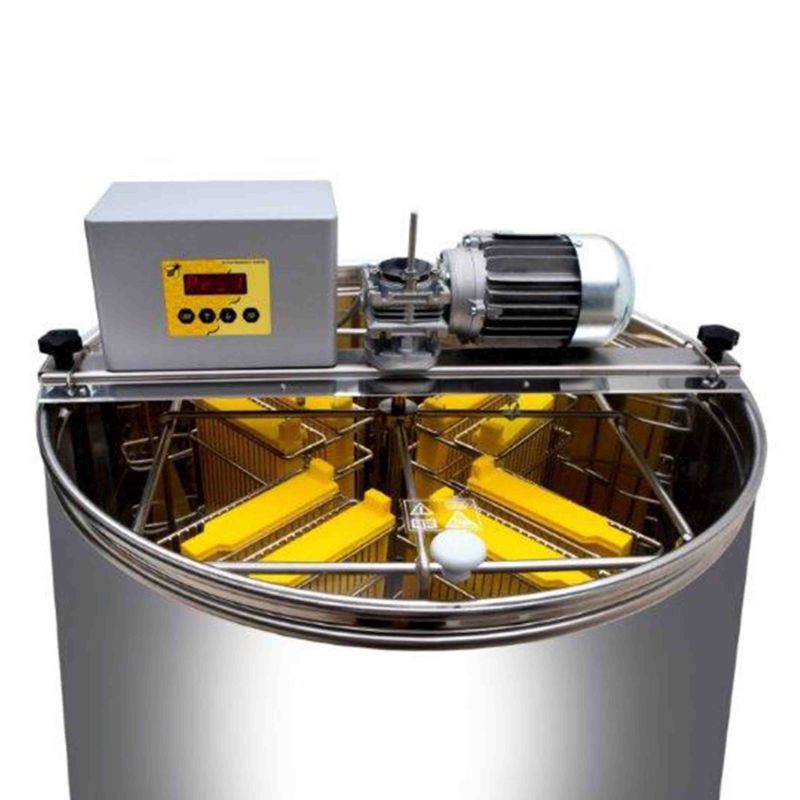

The fully automatic control allows the entire extraction process to run automatically so you can attend to other tasks in the meantime. Operation is simple via a membrane keypad. You can set and store up to 8 different programs. Each program can be programmed with 8 different times, directions and speeds. Basic extraction programs are pre-set but can be changed or supplemented and saved at any time.
Compact design, quiet operation and reliable performance.

Warranty: 2 years

Optional accessories:

Fitting rubber pads (Art. No. 7754) to the extractor feet reduces slipping.
• If 230 V is not available, the voltage inverter 12 V DC–230 V AC, 600 W (Art. No. 4627) allows you to power the extractor from a 12 V accumulator/battery.
• Replacement tangential basket with additional central axle for extracting large frames up to 30 cm high.

• Drive: Programmed fully automatic with 110 W / 230 V motor (fully automatic control with safety switch)
• Number of frames: 8 (full/shallow 0/8)
• Maximum frame: 17.7 x 48 cm (H x top bar)
• Suitable for: Dadant Blatt (honey super), DNM shallow / EHM shallow, Langstroth honey super, Swiss Stock honey super
• Bottom: seamless-welded and inclined toward the squeeze tap
• Honey tap: welded at the lowest possible point (stainless squeeze tap)
• Tank diameter (inside/outside): 63 / 66 cm
• Cassette size / pocket size: 18.5 x 44 x 5.3 cm (specified in technical data); in the text above sometimes given as 18.5 x 42 x 5.3 cm

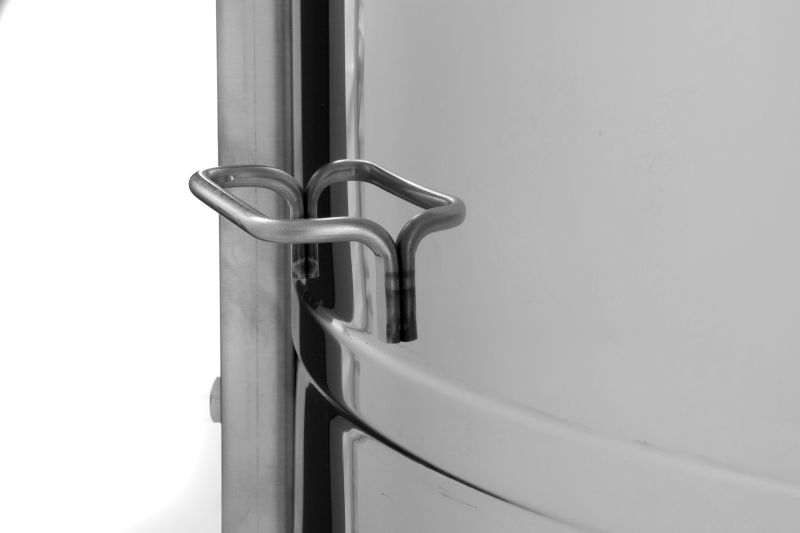

• Handles: two side handles
• Material: Stainless steel W.Nr. 1.4301 / AISI 304
• Extractor type: Self-reversing extractor
• Made in EU (Slovenia)
• Type: LTA 8SSD
