Description
Suitable for: Langstroth 1/1, Langstroth honey super, Type B, Austrian wide comb, Kuntzsch wide, Gerstung — allows extraction of up to 16 frames with maximum dimensions 26.5 x 48 cm.
Cassette size: 27.5 x 44 x 4.5 cm
Drive: Motor drive 750 W / 230 V with fully automatic control
Inner diameter of the drum: 110 cm

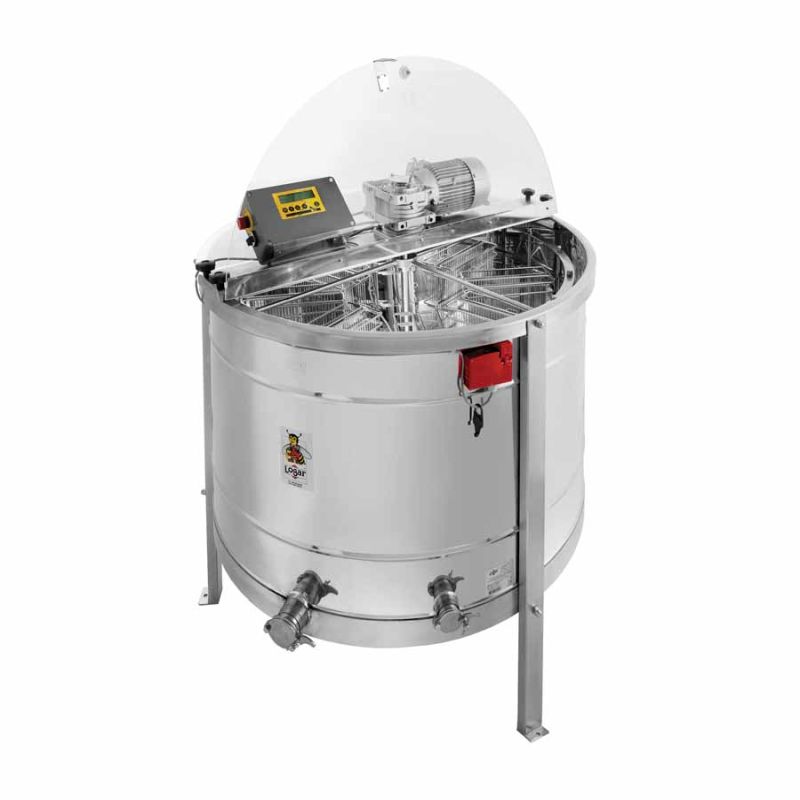

16-frame self-reversing honey extractor with 750 W / 230 V motor drive, fully automatic control and an integrated safety lock that prevents the lid from being opened during operation. The frame pockets in the extractor are double-sided; a sheet between them directs the honey flow. The extractor has two stainless steel pinch valves. The valve is fitted at the lowest possible point so that all honey can drain from the extractor. All parts that come into contact with honey are made from food-grade materials. The lid is made of transparent acrylic.
The frame pockets are constructed from vertical grid bars of suitable density to prevent the frames from being damaged during extraction. They are linked by a special mechanism. The pockets prevent honey from pooling during extraction, so the frames are dry after spinning.
The extractor is detachable and can therefore be easily transported through an 80 cm door frame.
Fully automatic control allows the entire extraction process to run unattended so you can attend to other tasks in the meantime. Operation is simple via a membrane keypad and a two-line digital LCD display. You can set and save up to 8 different programs. Each program can be configured with up to 8 different times, directions and rotational speeds. Basic extraction programs are preset but can be modified, expanded and saved at any time.
Compact design, quiet operation and reliable performance.
Warranty: 2 years
Optional equipment:
• Bottom heater for extractor Ø 95-110 cm incl. installation – our recommendation for faster honey flow from the extractor, quicker filtering of the honey and easier cleaning of the extractor, Art. No. 7126
Technical data:
Cassette size: 27.5 x 44 x 4.5 cm
Drive: Motor drive 750 W / 230 V with fully automatic control
Inner diameter of the drum: 110 cm
16-frame self-reversing honey extractor with 750 W / 230 V motor drive, fully automatic control and an integrated safety lock that prevents the lid from being opened during operation. The frame pockets in the extractor are double-sided; a sheet between them directs the honey flow. The extractor has two stainless steel pinch valves. The valve is fitted at the lowest possible point so that all honey can drain from the extractor. All parts that come into contact with honey are made from food-grade materials. The lid is made of transparent acrylic.
The frame pockets are constructed from vertical grid bars of suitable density to prevent the frames from being damaged during extraction. They are linked by a special mechanism. The pockets prevent honey from pooling during extraction, so the frames are dry after spinning.
The extractor is detachable and can therefore be easily transported through an 80 cm door frame.
Fully automatic control allows the entire extraction process to run unattended so you can attend to other tasks in the meantime. Operation is simple via a membrane keypad and a two-line digital LCD display. You can set and save up to 8 different programs. Each program can be configured with up to 8 different times, directions and rotational speeds. Basic extraction programs are preset but can be modified, expanded and saved at any time.
Compact design, quiet operation and reliable performance.
Warranty: 2 years
Optional equipment:
• Bottom heater for extractor Ø 95-110 cm incl. installation – our recommendation for faster honey flow from the extractor, quicker filtering of the honey and easier cleaning of the extractor, Art. No. 7126
Technical data:
- Type: LTA 16S SD
- Suitable for: Langstroth 1/1, Langstroth honey super, Type B, Austrian wide comb, Kuntzsch wide, Gerstung and more — maximum possible frame size: 26.5 x 48 cm
- Drive / Control: Fully programmable automatic with motor 750 W / 230 V; fully automatic control with membrane keypad and two-line LCD; up to 8 programs with up to 8 times, directions and speeds each
- Capacity: 16 frames (deep / shallow)
- Drum data: Inner diameter 110 cm; drum diameter inside/outside 110 / 117 cm; total height with feet / with drive 113 / 136 cm; drum height without/with drive 79 / 100 cm; height from floor to honey tap 34 cm
- Cassette size: 27.5 x 44 x 4.5 cm
- Honey taps: 2 pinch valves, Ø 42 mm + Ø 53 mm, positioned at the lowest possible point for complete honey drainage
- Material: Stainless steel grade 1.4301 / AISI 304 — all honey-contact parts food-grade
- Extractor type: Self-reversing extractor
- Additional features: Transparent acrylic lid; built-in safety lock; disassemblable for transport through an 80 cm door frame; quiet operation; made in EU (Slovenia)
Features
| Besonderheit | Vollautomatik Antrieb mit Frequenzumrichter |
|---|---|
| Vorteile |
|
