Suitable for: Langstroth 1/1, Langstroth honey super, DNM/EHM (including shallow), Zander (including shallow) and others; spins 8 frames up to max. 23 x 48 cm (alternatively 16 combs up to 11 cm high).

Pocket size: 24 x 40 x 4.5 cm
Drive: 250 W / 230 V motor with fully automatic control
Inner diameter of vat: 82 cm

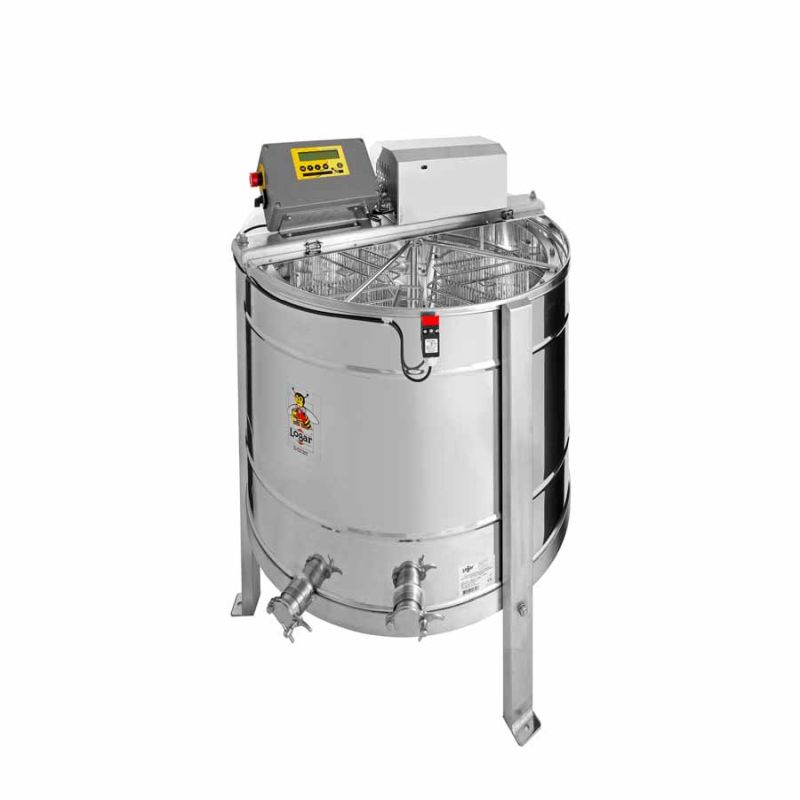

The 8-frame self-reversing honey extractor from Logar (fully electronic) is equipped with a 250 W motor (230 V), a fully automatic controller and an integrated safety device that automatically stops the motor when the lid is opened. The extractor has two stainless pinch valves 6/4'' (Ø 42 mm each); one is mounted at the lowest possible point so that all honey can drain from the vat. All parts that come into contact with honey are made from food-grade materials. The lid is made of transparent acrylic.

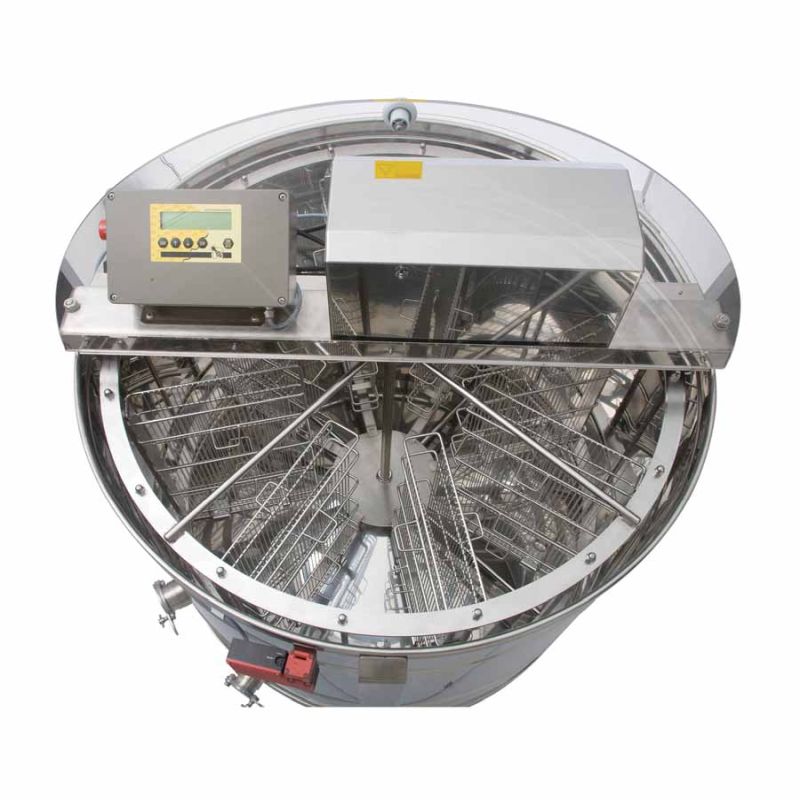

The frame pockets are made of vertical grid bars at an appropriate spacing so the frames are not damaged during spinning. They are linked by a special mechanism that prevents honey from accumulating in the pockets – the frames are dry after extraction.

The extractor can be disassembled and fits through door openings from 80 cm width, making transport and installation easy.

The fully electronic control allows the complete automatic execution of the extraction process, letting you attend to other tasks. Operation is simple via a membrane keypad and a two-line digital LCD display. Up to 8 programs can be stored; each program can be configured with up to 8 time segments, directions and speeds. Basic programs are preinstalled and can be adjusted flexibly.

Compact design, quiet operation and reliable performance. Warranty: 2 years.

Optional accessories:
• Base heater for extractor Ø 82 cm incl. installation – our recommendation for faster honey flow, quicker straining and easier cleaning (Art. No. 7128)
• Voltage inverter 12V DC→230V AC, 600 W for use with a 12V accumulator/battery (Art. No. 4627)
• Rubber pads for the feet to reduce slipping (Art. No. 7769)

Technical data:

• Drive: programmable full automatic with 250 W / 230 V motor; fully automatic control and integrated safety shut-off when the lid is open.
• Number of frames: 8 (full/shallow 8/8); alternatively 16 combs up to a height of 11 cm.
• Max. frame size: up to 23 x 48 cm.
• Cassette size: 24 x 40 x 4.5 cm.
• Vat diameter: inner 82 cm / outer 86 cm; bottom seam-welded and inclined toward the pinch valve.
• Heights: total height with feet / with drive = 112 / 132 cm; vat height without/with drive = 75 / 97 cm; height from floor to honey valve = 37 cm.
• Honey valves: 2x Ø 42 mm (pinch valves), one welded at the lowest possible point.
• Frame pockets: vertical grid bars with special mechanism – frames dry after extraction.
• Lid: transparent acrylic.
• Material: Stainless steel W.No. 1.4301 / AISI 304.
• Type: LTA 8SS-M.
• Made in the EU (Slovenia).
• Can be disassembled for transport through door openings from 80 cm.
• Warranty: 2 years.
