Suitable for: Langstroth 1/1, DNM/EHM (including shallow), Langstroth honey super, Zander (including shallow) and up to 12 combs up to 11 cm high. Maximum frame size: 23 x 48 cm.

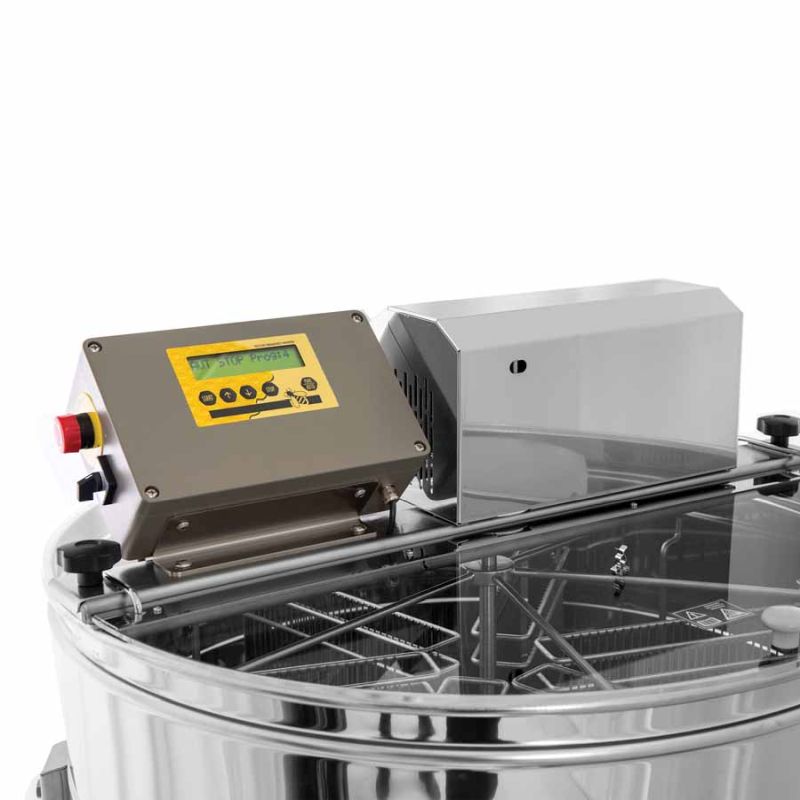

6-frame self-reversing honey extractor by Logar with fully electronic program control. The extractor is driven by a powerful motor 180 W / 230 V and features a fully automatic control with a membrane keypad and a two-line digital LCD display. You can set and save up to 8 different programs; each program can be configured with up to 8 time intervals, directions and rotation speeds. The controller runs the entire extraction process automatically so you can attend to other tasks while the machine operates.

The tank bottom is seamless welded and sloped toward the outlet. The innovative design of the bottom, together with two stainless honey valves (Ø 38 mm and Ø 42 mm), one of which is welded at the lowest possible point, ensures complete and clean draining of the honey. All honey-contact parts are made from food-grade materials. The lid is transparent acrylic for good visibility during extraction. An integrated safety switch automatically stops the motor when the lid is opened.

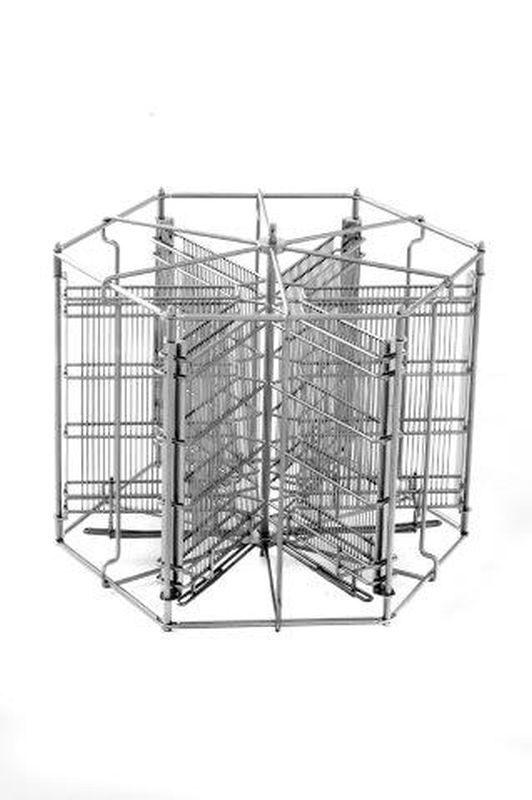

The frame pockets (cassettes) consist of upright grid bars with an appropriate spacing so that the frames are not damaged during extraction. A special mechanism links the pockets; this prevents honey from collecting in the pockets and leaves the frames dry after extraction.

Comfortable standard equipment and optional accessories:

• Voltage converter 12V DC → 230V AC, 600W: Art. 4627 – allows operation from a 12V battery.
• Bottom heater for honey extractor Ø 76 cm incl. installation (recommended for faster honey flow, quicker straining and easier cleaning): Art. No. 7125.
• Rubber pads for the feet to reduce slipping: Art. 7769.

Compact design, quiet operation and high reliability. 2-year warranty.

Technical data:

• Type: LTA 6SS-M
• Material: Stainless steel grade W.Nr. 1.4301 / AISI 304
• Drive: fully automatic program control with motor 180 W / 230 V (fully automatic control)
• Number of frames (full / shallow): 6 / 6
• Maximum frame size: 23 x 48 cm
• Suitable for: Langstroth 1/1; DNM / EHM; DNM shallow / EHM shallow; Langstroth honey super; Zander; Zander shallow; and up to 12 combs up to 11 cm high
• Tank diameter (inside / outside): 76 / 79 cm; internal diameter of the tank: 76 cm
• Cassette size (pocket size): 24 x 40 x 4.5 cm
• Tank height without / with drive: 73 / 93 cm
• Total height with feet / with drive: 112 / 132 cm
• Height from floor to honey tap: 39 cm

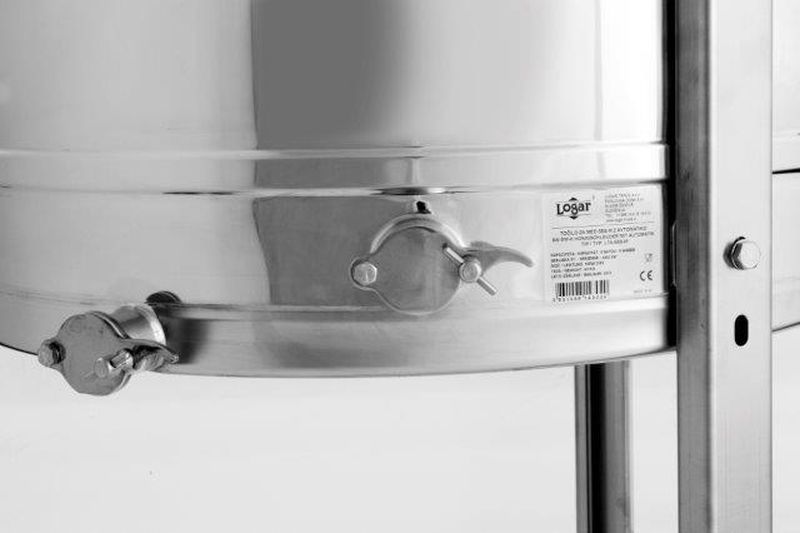

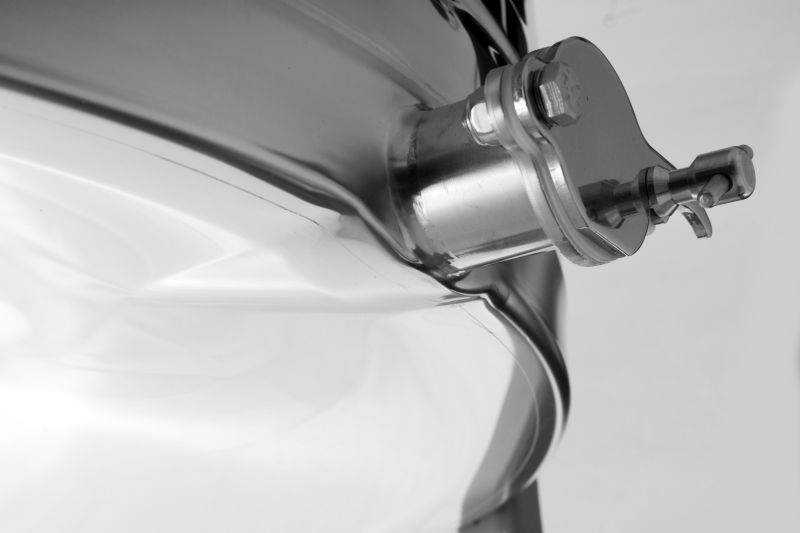

• Honey valves: 1x Ø 38 mm + 1x Ø 42 mm (one welded at the lowest possible point)
• Bottom: seamless welded and sloped toward the outlet valve

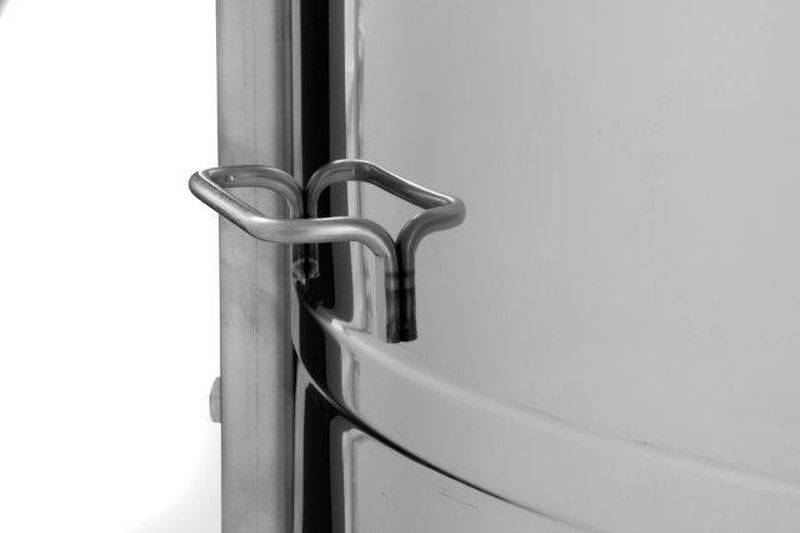

• Handles: two side handles
• Made in the EU (Slovenia)
