Suitable for: Dadant honey super, Dadant Blatt honey super, DNM shallow / EHM shallow, Langstroth honey super, etc. Maximum frame size: 16.5 x 48 cm (height up to 16.5 cm, top-bar length up to 48 cm).

Pocket size: 17.5 x 44 x 4.5 cm
Drive: Motor drive 110 W / 230 V with fully automatic control
Inner diameter of the drum: 63 cm

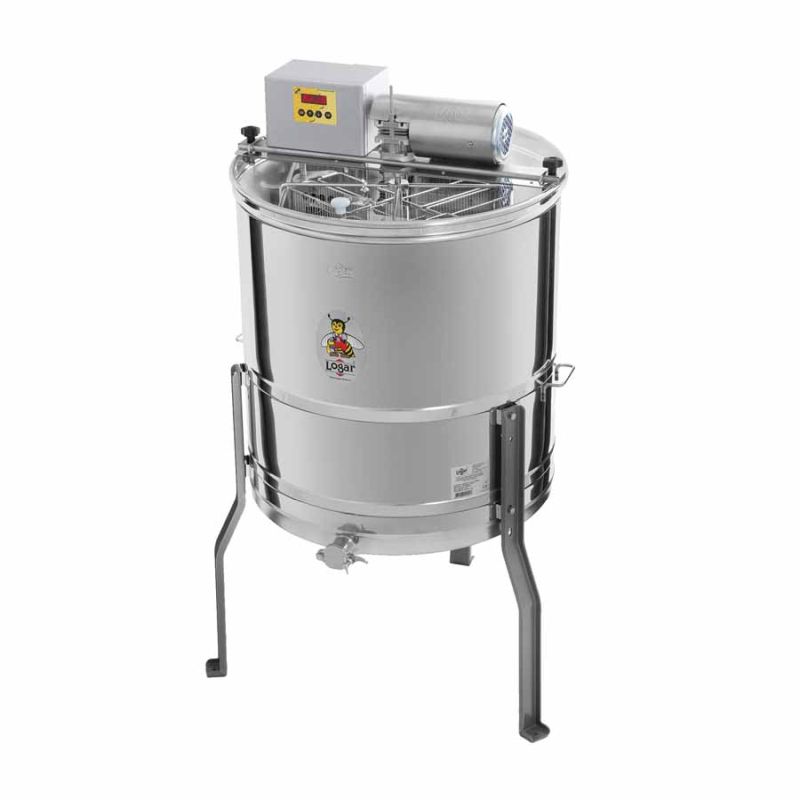

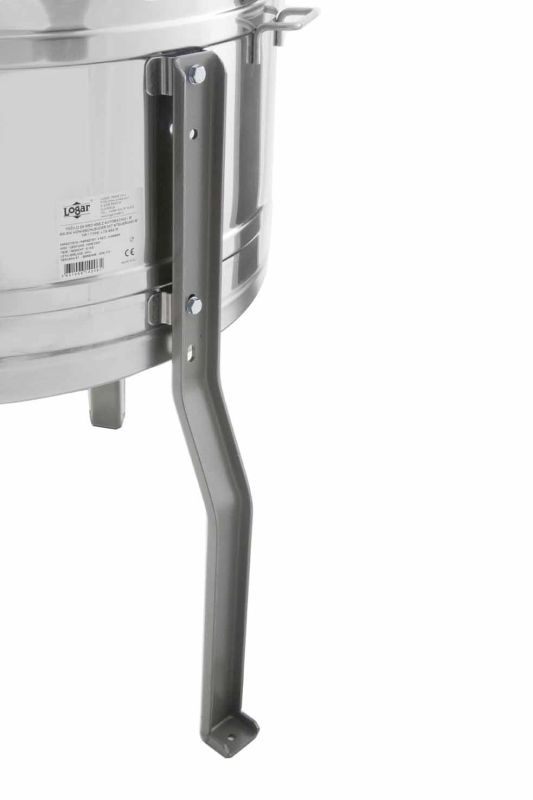

Innovative self-reversing honey extractor with double pockets — designed to efficiently extract many shallow combs on a small drum diameter. The 8-frame self-reversing extractor with motor drive (110 W / 230 V) features a fully automatic control and a safety switch that immediately cuts power when the lid is opened. The double-sided frame pockets are separated by a sheet through which the honey flows. State-of-the-art engineering and a seamless welded, sloped drum bottom ensure complete honey drainage. The stainless steel pinch valve is welded at the lowest possible point so that all honey can be removed. All honey-contact parts are made from food-grade materials. The lid is transparent acrylic, and specially designed feet provide stable support.

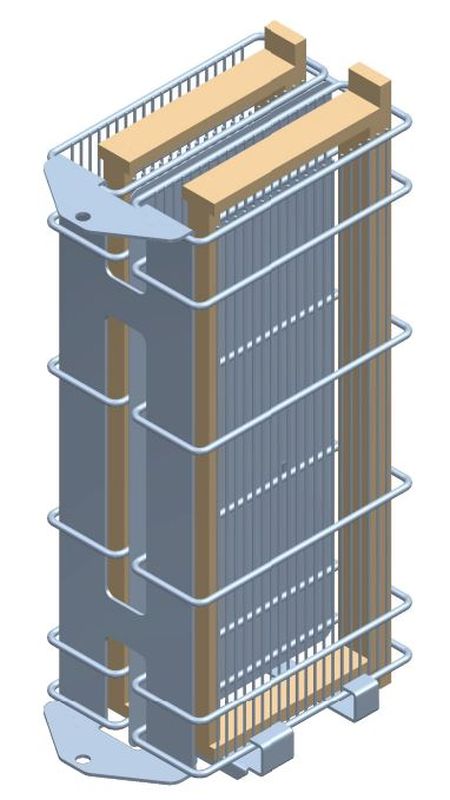

The frame pockets are made from vertical grid bars of appropriate density so frames are not damaged during extraction. Connected by a special mechanism, the pockets prevent honey backflow, leaving frames dry after extraction.

The fully automatic control allows the entire extraction process to run autonomously so you can attend to other tasks. Operation is simple via a membrane keypad. Up to 8 different programs can be set and saved; each program can be programmed with up to 8 times, directions and rotational speeds. Basic programs are preconfigured and can be adjusted at any time.

Compact design, quiet operation and reliable performance. Warranty: 2 years.

Optional accessories:
Fitting rubber pads (Art. 7754) to the feet reduces slipping of the extractor.
If 230 V is not available, the voltage converter 12 V DC→230 V AC, 600 W (Art. 4627) allows operation from a 12 V battery.

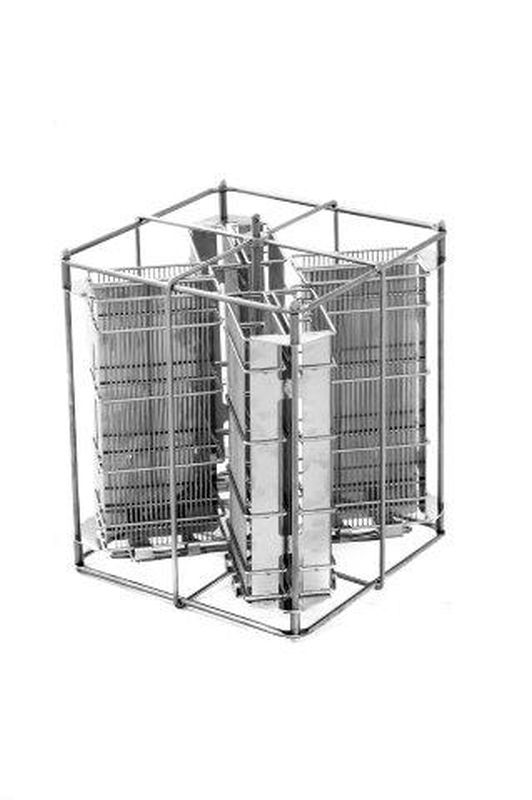

Spare tangential basket with additional central axle for extracting large combs up to 30 cm high.

• Type: LTA 8SSD
• Drive: Fully automatic program control with motor 110 W / 230 V (fully automatic control and safety switch)
• Number of frames (full-depth / shallow): 0 / 8
• Cassette size: 17.5 x 44 x 4.5 cm
• Maximum frame: 16.5 x 48 cm
• Drum diameter (inner / outer): 63 / 66 cm (inner drum diameter: 63 cm)
• Heights: Total height with feet / with drive: 111 / 126 cm; Drum height without/with drive: 70 / 85 cm; Height from floor to honey gate: 40 cm
• Honey gate: 1x Ø 38 mm, welded at the lowest possible point
• Material: Stainless steel W.Nr. 1.4301 / AISI 304
• Extractor type: Self-reversing extractor
• Features: Double-sided frame pockets, seamless welded sloped bottom to the honey gate, transparent acrylic lid, compact and quiet design
• Made in: EU (Slovenia)
