Suitable for: Langstroth 1/1, DNM/EHM, DNM shallow/EHM shallow and Langstroth super. Maximum frame: 23.5 × 48 cm. Capacity: 12 frames (height 14–22 cm) or 8 frames (height 14–24 cm, top-bar length 48 cm).

CAPACITY: 12 frames with a height of 14 - 22 cm OR 8 frames with a height of 14 - 24 cm
DRIVE: Motor drive 110 W/230 V with fully automatic control
INNER DIAMETER of the tank: 63 cm

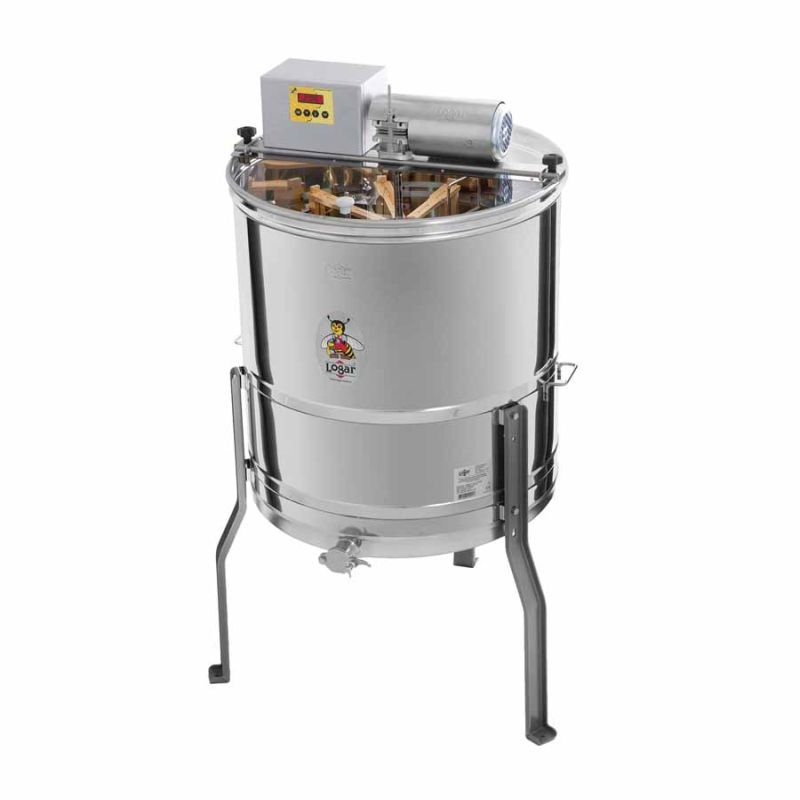

12-frame radial honey extractor from Logar, with 110 W/230 V motor drive, fully electronic control and integrated safety switch that automatically stops the motor when the lid is opened. Modern engineering enables an innovative design of the extractor bottom: the tank is seamlessly welded and inclined toward the outlet. The stainless-steel honey gate is welded at the lowest possible point so that all honey can flow out of the extractor. All parts in contact with honey are made of food-grade materials. The lid is made of transparent acrylic glass. A special design of the legs ensures stable footing for the extractor.

During extraction, frames do not need to be turned, as the centrifugal force together with the natural slope of the cells allows simultaneous extraction from both sides of the frames.

The fully electronic control allows the entire extraction process to run automatically so you can attend to other tasks while it operates. Operation is simple via a membrane keypad and a digital two-line LCD display. You can set and save up to 8 different programs, each with up to 8 time segments, directions and rotational speeds. Basic programs are pre-set and can be adjusted at any time.

Compact design, quiet operation and reliable performance. Warranty: 2 years.

Optional accessories:
- The radial extractor basket can be converted into a tangential basket by adding four insertion grids for tangential operation (Art.-Nr. 7761), allowing extraction of four large frames up to 30 cm high. In this case a hanging bag for cappings wax (Art.-Nr. 7758) can be used so honey can drain from the cappings.
- Rubber pads for the feet (Art.-Nr. 7754) reduce slipping of the extractor.
- Bottom heater for 63 cm honey extractor incl. installation – recommended for faster honey flow, quicker straining and easier cleaning (Art.-Nr. 7127).
- If 230 V is not available: voltage converter 12V DC → 230V AC, 300 W (Art.-Nr. 4626) for use with a 12 V battery/accumulator.

Highlights of the Logar radial extractor: high-quality stainless-steel construction, seamless tank, low-welded honey gate, fully electronic control with programmable memory and safety shut-off on the lid. Ideal for beekeepers who want efficient, hygienic and reliable honey processing.

Technical data:

• Drive: fully automatic program control with 110 W / 230 V motor
• Number of frames (deep / shallow): 8 / 12 — Capacity: 12 frames (height 14–22 cm) or 8 frames (height 14–24 cm, top-bar length 48 cm)
• Maximum frame: 23.5 × 48 cm
• Suitable for: Langstroth 1/1, DNM / EHM, DNM shallow / EHM shallow, Langstroth super
• Bottom: seamless welded and inclined toward the honey gate
• Honey gate: welded at the lowest possible point
• Handles: two side handles
• Tank diameter (inside / outside): 63 / 66 cm
• Material: Stainless Steel W.Nr. 1.4301 / AISI 304
• Extractor type: radial extractor
• Model: LTA 12SR
• Warranty: 2 years
• Manufactured in the EU (Slovenia)
