Suitable for: Langstroth 1/1, DNM/EHM, DNM shallow/EHM shallow, Langstroth honey super, Zander, Zander shallow, Austrian broad comb, Kuntzsch wide, Gerstung, etc. — for frames up to a height of 14–26 cm and a top-bar length up to 48 cm.

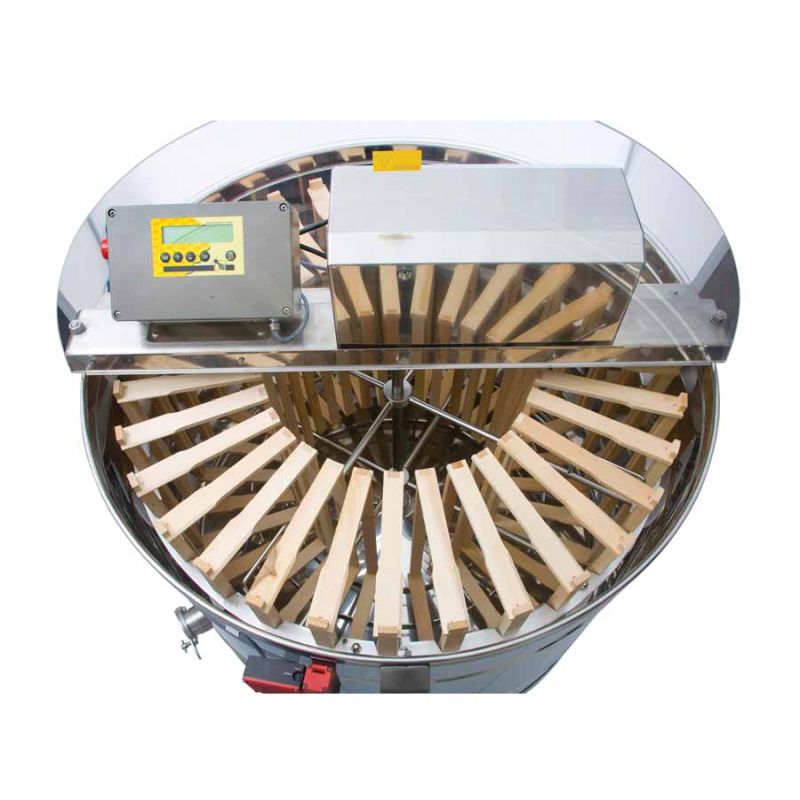

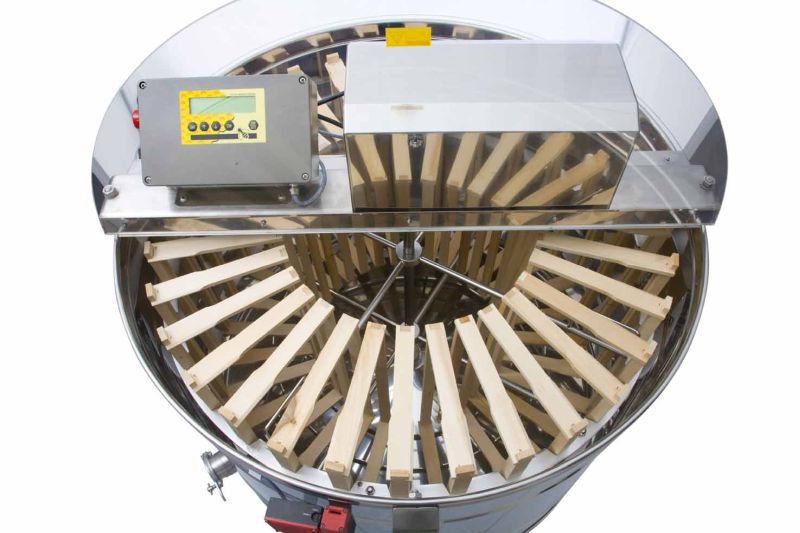

32-frame radial honey extractor with motor drive 370 W / 230 V, fully automatic control and integrated safety device that automatically stops the motor when the lid is opened. State-of-the-art engineering enables an innovative design of the extractor tank. The tank bottom is seamless-welded and sloped toward the outlet. The extractor is equipped with two stainless steel draw-off valves (Ø 42 mm and Ø 53 mm). The 53 mm draw-off valve is welded at the lowest possible point so that all honey can drain from the extractor. All parts that come into contact with honey are made from food-grade materials. The lid is made of transparent acrylic.

Frames do not need to be turned during extraction, as centrifugal force together with the natural inclination of the cells ensures simultaneous and double-sided emptying of the frames.

The honey extractor is demountable and can therefore be easily transported through an 80 cm wide door frame.

Allows extraction of 32 frames with heights of 14–26 cm and a top-bar length of up to 48 cm.

The fully automatic control executes the entire extraction process independently, allowing you to attend to other tasks while it runs. Operation is simple via a membrane keypad and a two-line digital LCD display. You can program and save up to 8 different programs. Each program can be configured with up to 8 different times, directions and rotational speeds. Basic programs are pre-set but can be modified or expanded and re-saved at any time.

Compact design, quiet operation and reliable performance. Warranty: 2 years.

Optional accessories:

• Voltage converter 12V DC–230V AC, 600W (for operation from a 12V battery): Art. No. 4627
• Bottom heater for honey extractor Ø 95–110 cm incl. installation – recommended for faster honey flow, quicker straining and easier cleaning: Art. No. 7126
• Conversion of the radial extraction cage into a tangential cage using hanging grids (4 pcs) – allows extraction of four large frames up to 30 cm height: Art. No. 7761. In this case a hanging bag for cappings can be attached: Art. No. 7758
• Rubber pads for the support feet to reduce slipping: Art. No. 7769

Technical data

• Type: LTA 32SR
• Drive: Fully automatic program control with 370 W / 230 V motor and automatic safety shutdown when lid is opened
• Capacity: 32 frames (deep / shallow 32/32)
• Suitable for: Langstroth 1/1; DNM/EHM; DNM shallow/EHM shallow; Langstroth honey super; Zander; Zander shallow; Austrian broad comb; Kuntzsch wide; Gerstung and many others
• Maximum frame size: up to 26 x 48 cm (height x top-bar length)
• Tank diameter (inside/outside): 95 / 98 cm
• Heights: Total height with feet / with drive = 112 / 132 cm; tank height without/with drive = 74 / 94 cm; height from floor to honey tap = 37 cm
• Honey taps: 1 x Ø 42 mm + 1 x Ø 53 mm; honey tap welded at the lowest possible point
• Bottom: Seamless welded and sloped toward the draw-off valve
• Tank: Inner diameter 95 cm
• Made in EU (Slovenia)
• Material: Stainless steel W.Nr. 1.4301 / AISI 304
• Extractor type: Radial
• Warranty: 2 years
