Suitable for: Langstroth 1/1; DNM/EHM; DNM shallow/EHM shallow; Langstroth honey super; Zander; Zander shallow. Maximum frame height up to 24 cm, top-bar length up to 48 cm. Capacity: 12 frames (height 14–22 cm) or 8 frames (up to 24 cm).

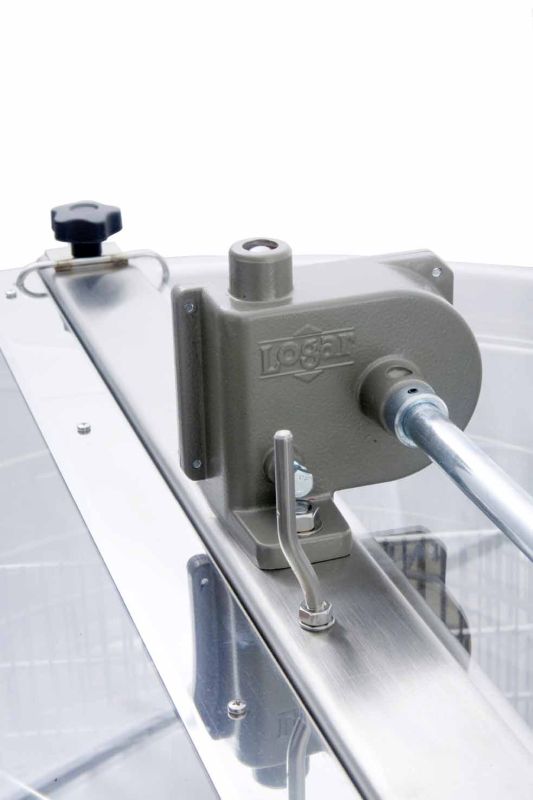

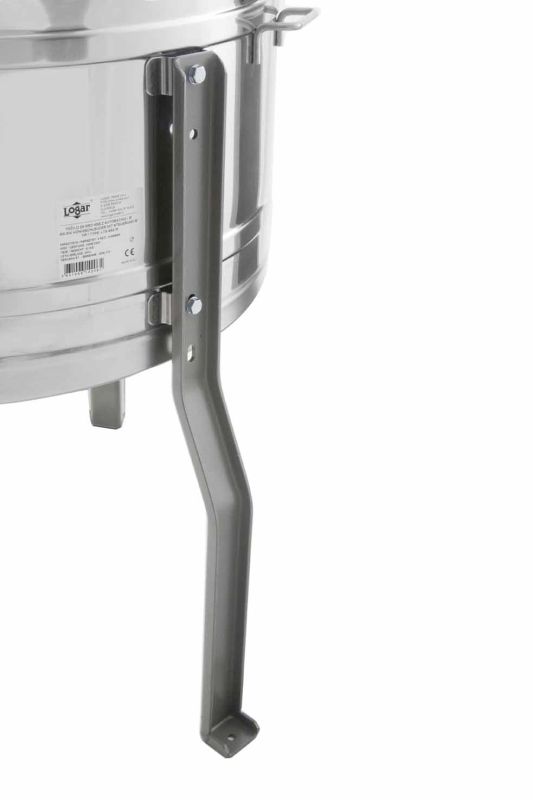

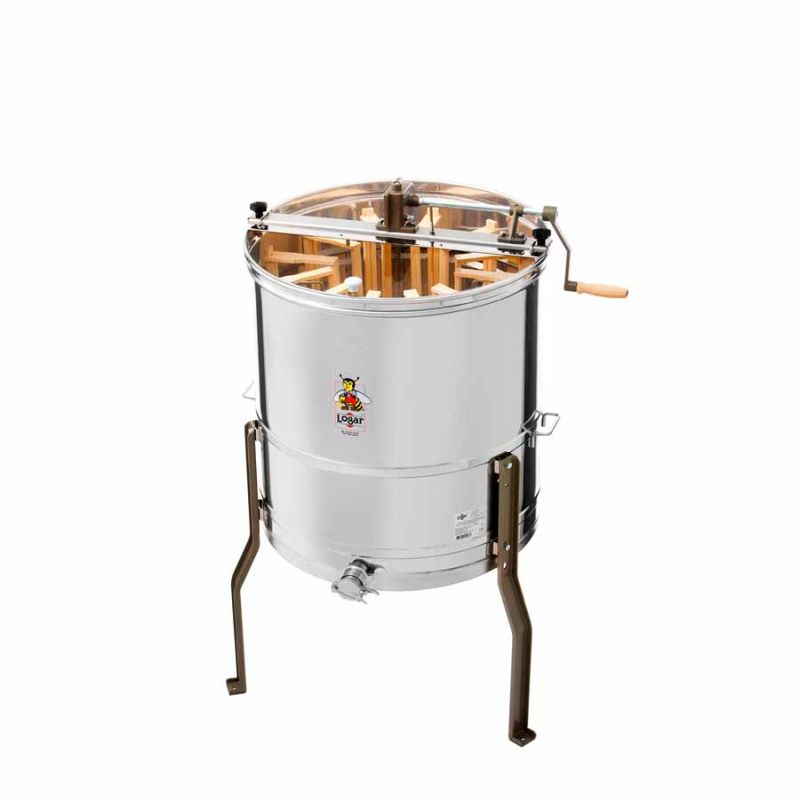

12/8-frame radial honey extractor with hand crank in a metal housing, fitted with a freewheel and back-pressure brake. State-of-the-art engineering enables an innovative design of the extractor bottom: the vat bottom is seam-welded and inclined toward the outlet. The squeeze valve (honey gate) is welded at the lowest possible point so that all honey can flow out of the extractor. All parts in contact with honey are food-grade. The lid is made of transparent acrylic. A special design of the feet ensures stable support.

Frames do not need to be turned during extraction: centrifugal force and the natural cell angle allow both sides of the frames to be emptied simultaneously.

Allows extraction of 12 frames with heights of 14–22 cm or 8 frames up to 24 cm (top-bar length up to 48 cm). Warranty: 2 years.

Optional accessories:

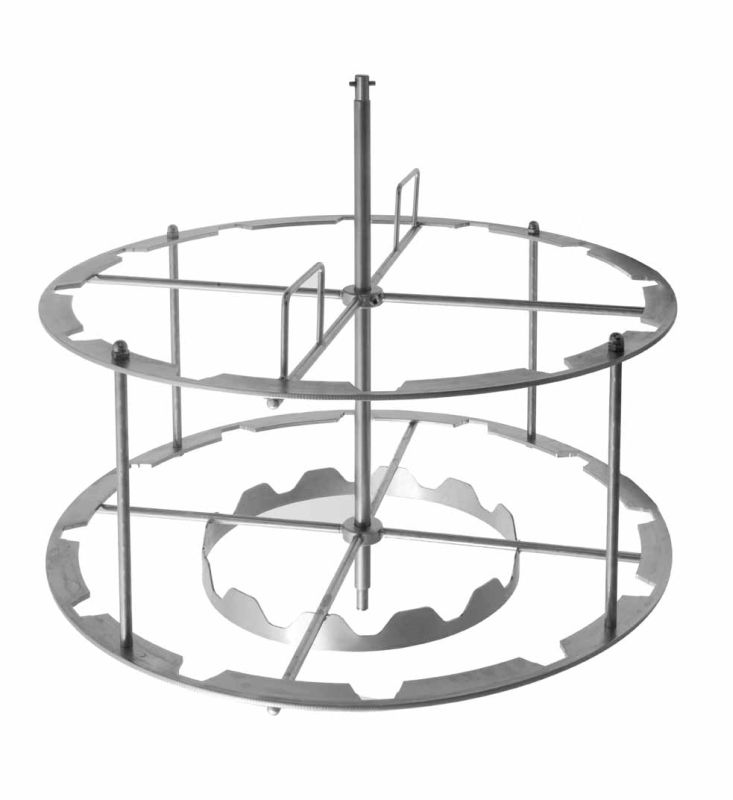

• The radial extractor basket can be easily converted into a tangential basket by adding four hanger grids for tangential operation Art. No. 7761. This enables extraction of four large frames up to 30 cm height. In this configuration a hanging pouch for cappings wax Art. No. 7758 can be placed inside the basket so honey from the cappings can drain away.
• Rubber pads for the feet Art. No. 7754 reduce slipping of the extractor.
• Bottom heater for extractor Ø 63 cm including installation – recommended for faster honey flow, quicker straining and easier cleaning: Art. No. 7127.

Technical data:

• Suitable for: Langstroth 1/1; DNM/EHM; DNM shallow/EHM shallow; Langstroth honey super; Zander; Zander shallow, etc.
• Capacity: 12 frames (height 14–22 cm) or 8 frames (height up to 24 cm); max top-bar length 48 cm
• Drive: hand crank
• Extractor type: radial extractor
• Bottom: seam-welded and inclined toward the honey gate
• Vat diameter (inside/outside): 63 / 66 cm
• Vat height without/with mechanism: 70 / 81 cm; Overall height with feet / with mechanism: 111 / 122 cm
• Height from floor to honey gate: 40 cm

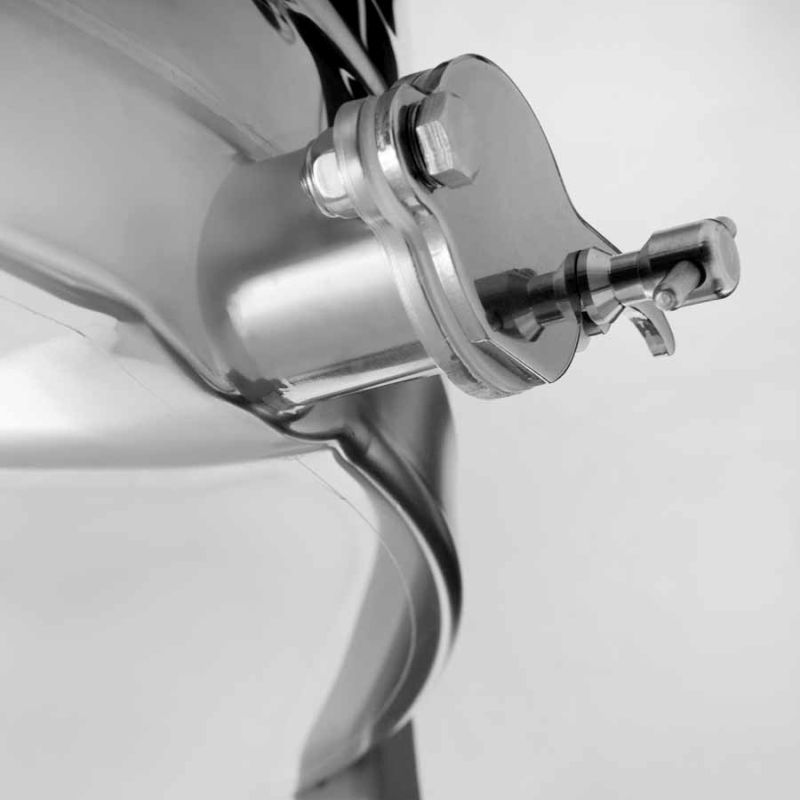

• Honey gate: 1x Ø 38 mm, welded at the lowest point

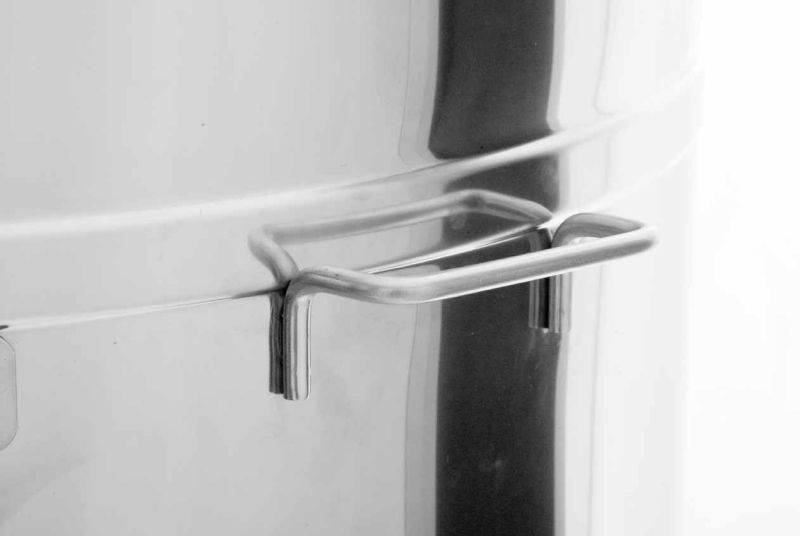

• Handles: two side handles
• Warranty: 2 years
• Made in: EU (Slovenia)
• Type: LTR 12SR
• Material: Stainless steel W.Nr. 1.4301 / AISI 304
