Suitable for: Langstroth 1/1, Dadant (brood and honey boxes as well as shallow honey super), DNM/EHM (including shallow), Zander (including shallow) and other frame types. Maximum frame heights: 11–16 cm (20 frames) or up to 20 cm (8 frames); top-bar length 48 cm.

Capacity: 20 frames with heights of 11–16 cm or 8 frames up to 20 cm
Internal drum diameter: 63 cm

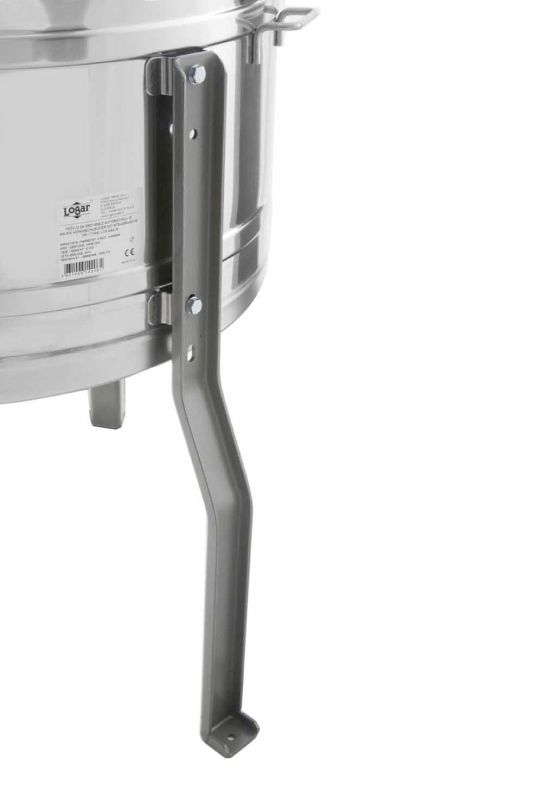

20/8-frame radial honey extractor with 110 W / 230 V motor drive and a safety switch that automatically cuts power to the motor when the lid is opened. State-of-the-art engineering allows an innovative design of the extractor bottom. The drum bottom is seam-welded and sloped toward the outlet. The squeeze valve is welded at the lowest possible point so that all honey can flow out of the extractor. All parts that come into contact with honey are made from food-safe materials. The lid is made of transparent acrylic. A special design of the feet provides excellent stability.

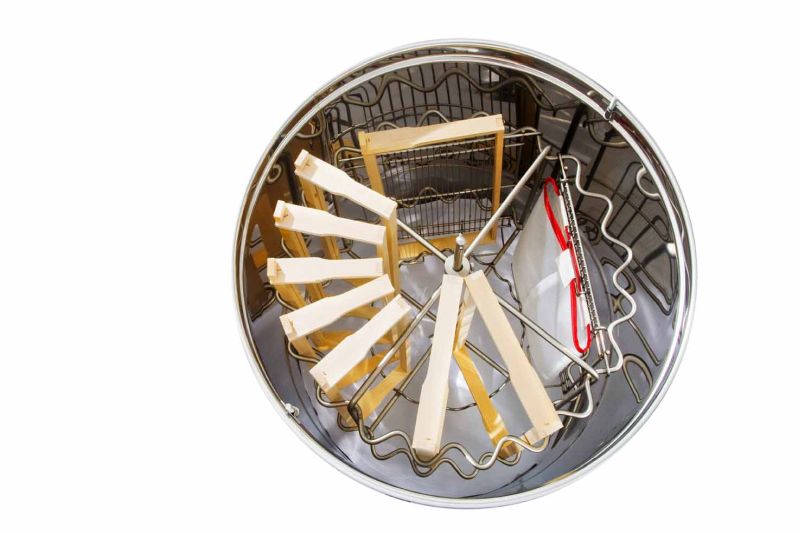

The radial basket can be easily converted into a tangential basket by fitting four additional hanging grids for tangential operation (included in the price). This also allows extraction of four large frames up to 30 cm in height.

An important advantage of this extractor is the large basket capacity despite the compact drum diameter.

Allows extraction of 20 frames (11–16 cm height) or 8 frames (up to 20 cm) with a top-bar length of 48 cm.

Warranty: 1 year

Optional accessories:

• A hanging cappings bag for collecting cappings wax can be attached inside the extractor basket (Art. 7758) so that honey can drain easily from the wax caps.
• Rubber pads for the feet to reduce slipping (Art. 7754).
• Inverter 12V DC → 230V AC, 300 W for operation from 12 V batteries (Art. 4626).
• Drum bottom heater for extractor Ø 63 cm including installation – recommended for faster honey drainage, quicker sieving and easier cleaning (Art. 7127).

Technical data:

• Type: LTM 20/8SR
• Drive: Motor 110 W / 230 V (with safety switch)
• Capacity: 20 frames (standard) / 8 frames (shallow) — possible configurations: 20 frames 11–16 cm high or 8 frames up to 20 cm; top-bar length 48 cm
• Drum diameter (inside/outside): 63 / 66 cm
• Drum height without/with drive: 70 / 82 cm; total height with feet / with drive: 111 / 123 cm
• Height from floor to honey tap: 40 cm; honey tap: welded at the lowest possible point (Ø 38 mm)
• Bottom: seam-welded and sloped toward the squeeze valve
• Grid area: 30 x 37 cm
• Handles: two side handles
• Warranty: 1 year
• Made in EU (Slovenia)
• Material: Stainless steel W.No. 1.4301 / AISI 304
