Suitable for: Langstroth 1/1, DNM/EHM, DNM shallow/EHM shallow, Langstroth honey super (and others). Max. frame size: up to 22 cm (when using 12 frames) or up to 24 cm (when using 8 frames); top bar length 48 cm.

Capacity: 12 frames up to a height of 14–22 cm or 8 frames up to a height of 24 cm
Inner diameter of the kettle: 63 cm

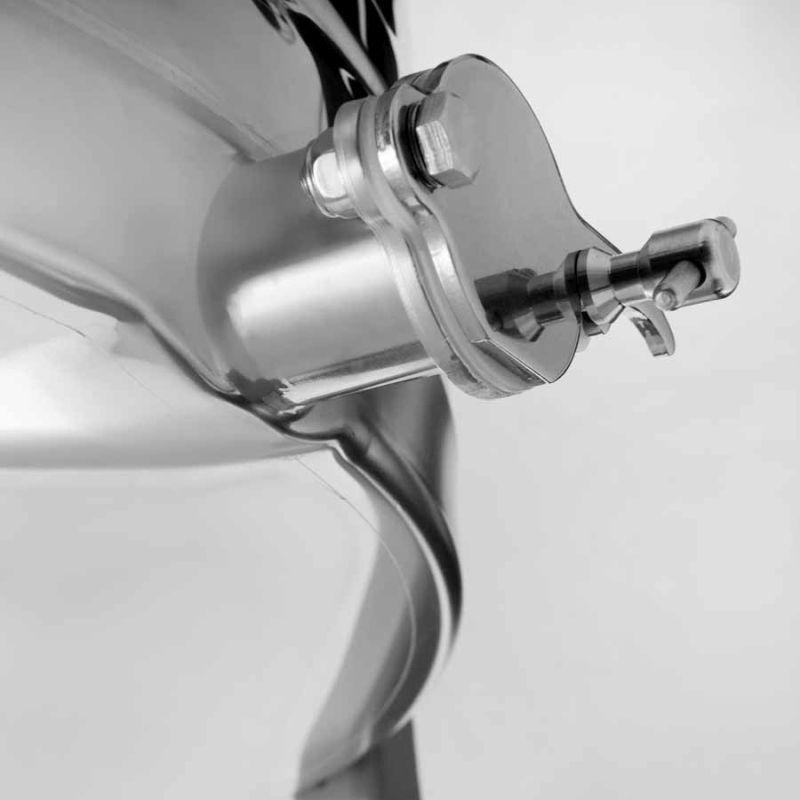

12-frame radial honey extractor with 110 W / 230 V motor drive and safety switch that automatically stops the motor when the lid is opened. State-of-the-art engineering allows an innovative design of the extractor bottom. The kettle bottom is seamlessly welded and sloped toward the outlet. The stainless steel squeeze valve is welded at the lowest possible point so that all honey can drain from the extractor. All parts that come into contact with honey are made from food-grade materials. The lid is made of transparent acrylic. A special design of the feet ensures outstanding stability.

Frames do not need to be turned during extraction; the centrifugal force together with the natural tilt of the cells ensures simultaneous, double-sided emptying of the frames.

Enables extraction of 12 frames up to 14–22 cm high or 8 frames up to 24 cm high, with a top bar length of 48 cm.

Warranty: 1 year

Optional accessories:

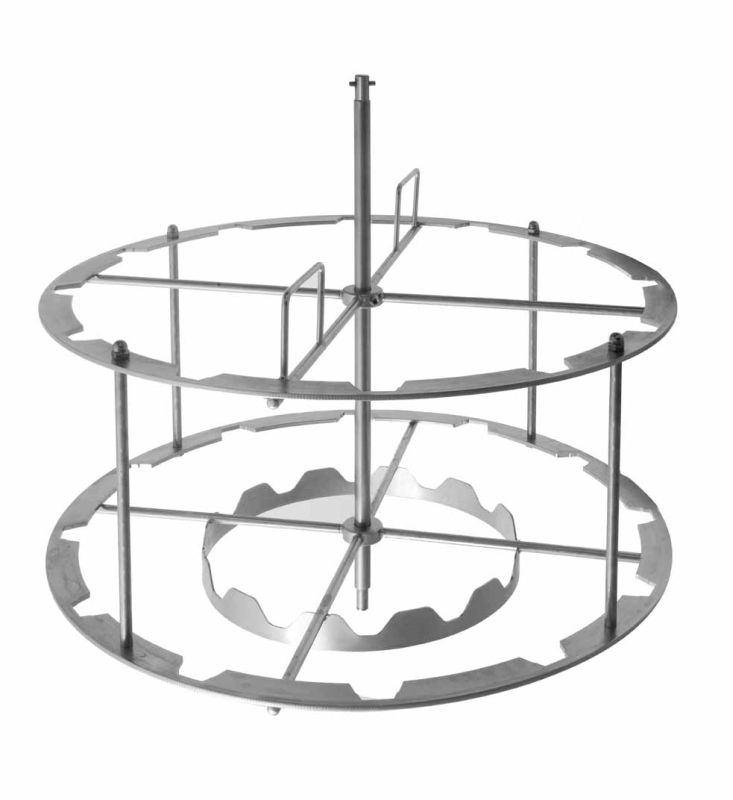

• The radial basket can easily be converted into a tangential basket by inserting four additional hanging grids for tangential operation (Art. No. 7761), allowing extraction of four large frames up to 30 cm height. In this configuration you can hang a cappings collection bag (Art. No. 7758) inside the basket so honey drains easily from the cappings.
• Fitting rubber pads (Art. No. 7754) to the extractor feet reduces slipping.
• If 230 V is not available, the voltage inverter 12 V DC → 230 V AC, 300 W (Art. No. 4626) allows operation from a 12 V accumulator/battery.
• Bottom heater for 63 cm extractor including installation – our recommendation for faster honey draining, quicker filtering and easier cleaning of the extractor (Art. No. 7127).

Technical data

• Type: LTM 12SR
• Material: Stainless steel W.Nr. 1.4301 / AISI 304
• Drive: Motor 110 W / 230 V (with safety switch)
• Number of frames (full-depth / shallow): 8 / 12
• Suitable for: Langstroth 1/1; DNM/EHM; DNM shallow/EHM shallow; Langstroth honey super, etc.
• Maximum frame dimension: up to 22 cm (with 12 frames) or up to 24 cm (with 8 frames); top bar length 48 cm
• Kettle diameter (inside / outside): 63 / 66 cm
• Bottom: seamlessly welded and sloped toward the squeeze valve

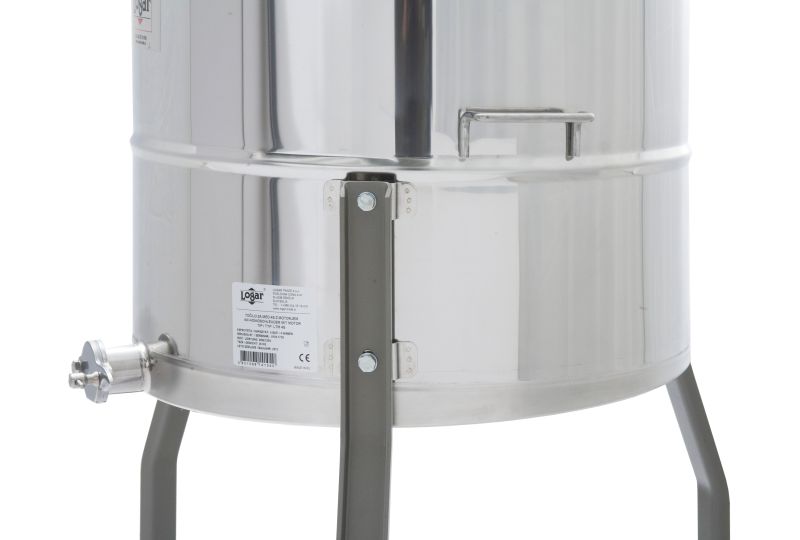

• Honey outlet: 1 × Ø 38 mm, welded at the lowest possible point; height from floor to honey outlet: 40 cm
• Total height with feet / with drive: 111 / 123 cm
• Kettle height without / with drive: 70 / 82 cm

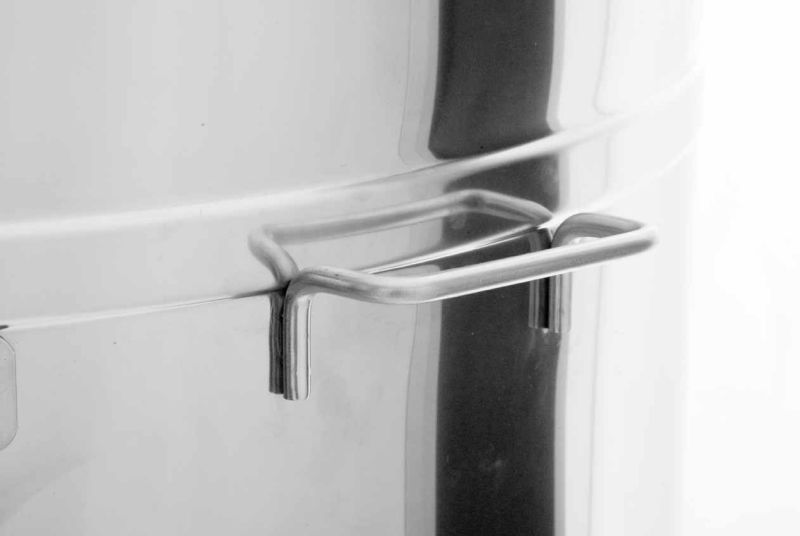

• Handles: two side handles
• Extractor type: radial
• Kettle Ø: 63 cm
• Made in: EU (Slovenia)
• Warranty: 1 year
• Optional accessories: hanging grids for tangential operation (Art. No. 7761), cappings collection bag (Art. No. 7758), rubber feet pads (Art. No. 7754), 12 V→230 V inverter (Art. No. 4626), bottom heater 63 cm (Art. No. 7127).
