Description
Suitable for: mixing and stirring honey up to 100 kg (minimum quantity approx. 20–30 kg) — also suitable for producing creamed honey.
INSULATED & HEATED (jacket and bottom) for even better results
Honey stirring and mixing machine for mixing and stirring up to 100 kg of honey. Also suitable for producing creamed honey.

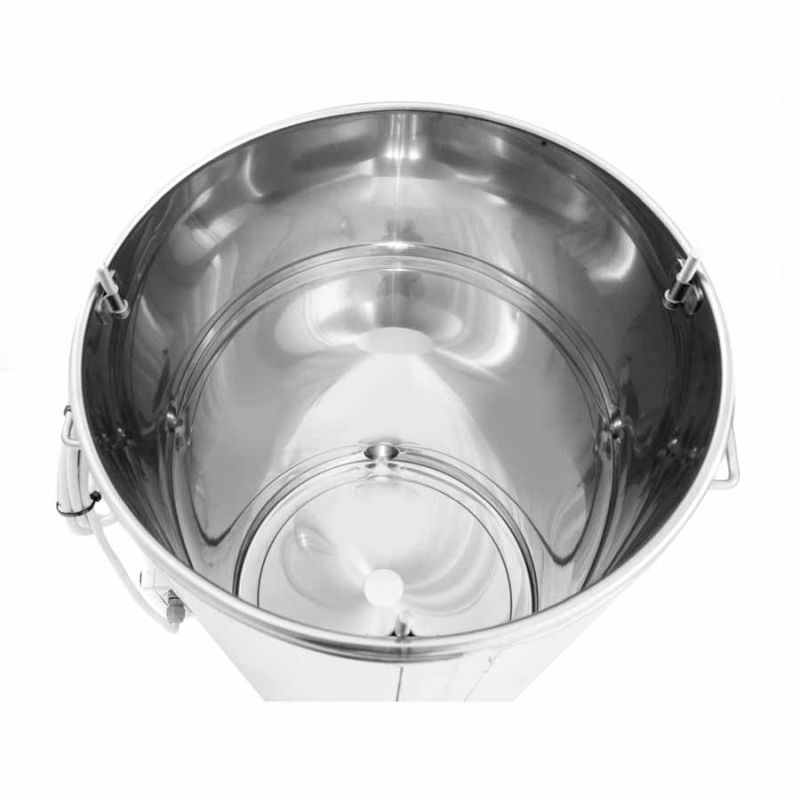

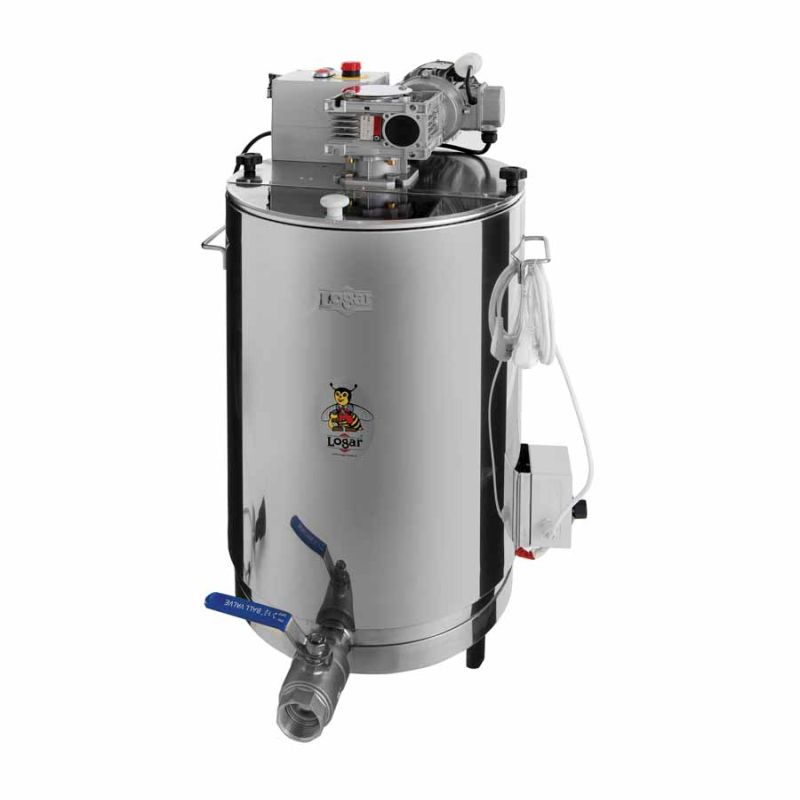

The homogenizer consists of a stainless steel tank and a geared motor with stirrer. The tank is equipped on the outside with an electric heating cable. The tank temperature is adjustable (thermostatically controlled). This also allows the honey to be thawed in the tank.

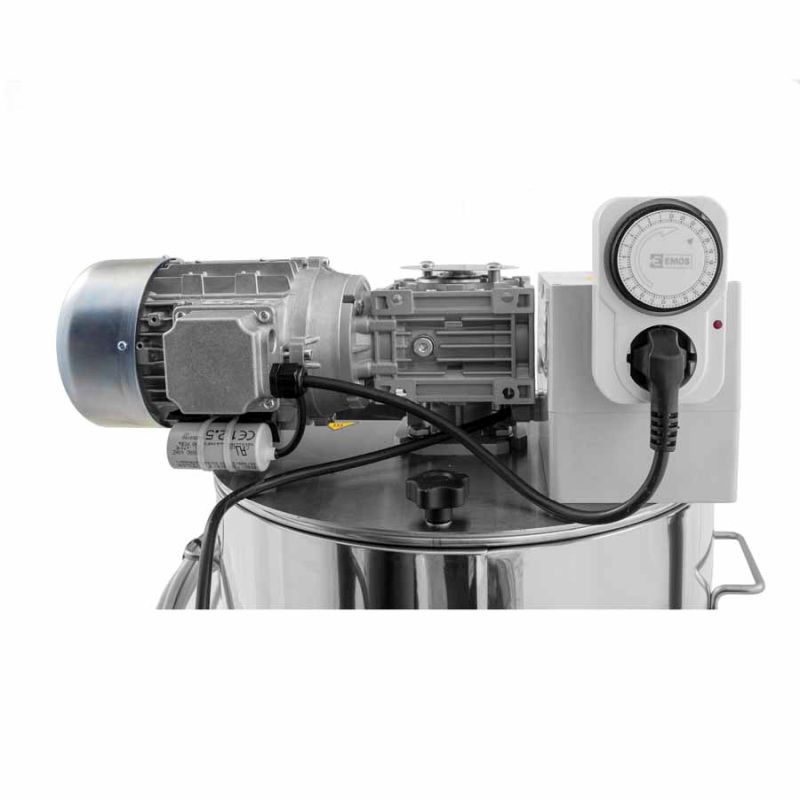

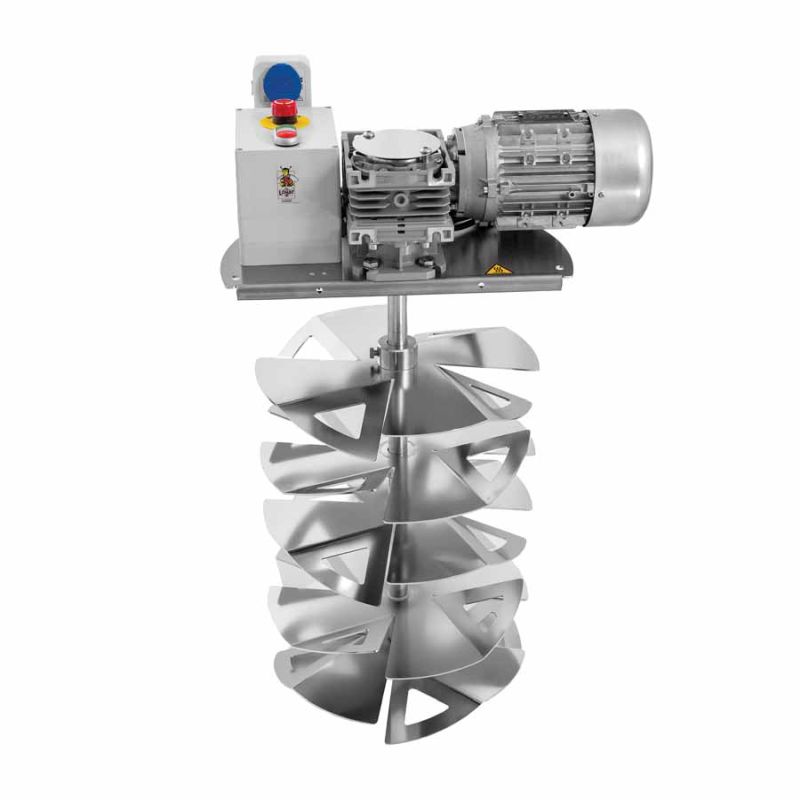

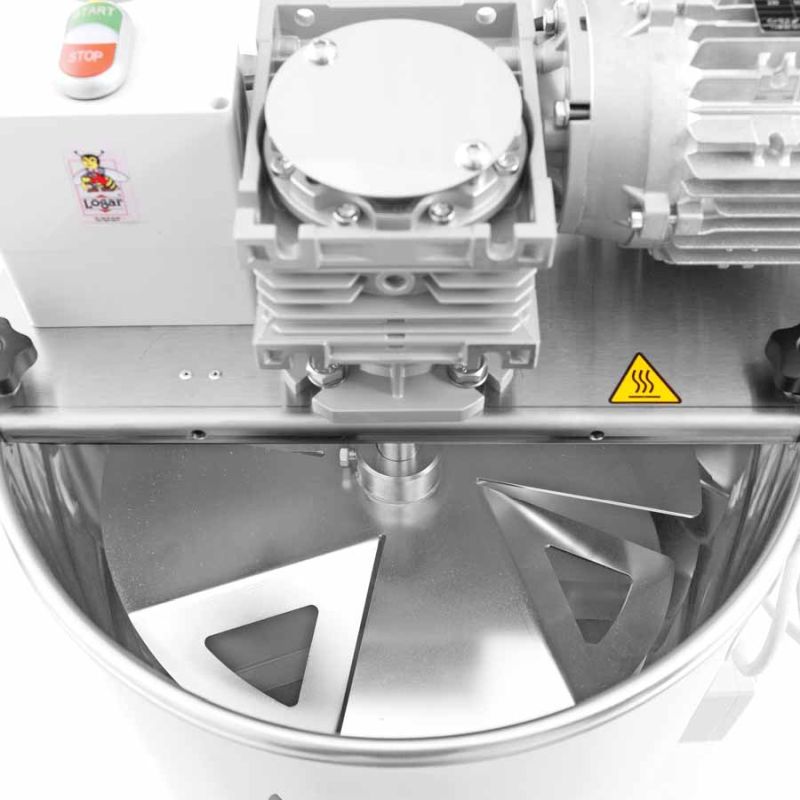

Mixing is driven by a geared motor. On the motor shaft there are two pairs of opposing stirring paddles with a vacuum effect and an additional height-adjustable paddle. A safety microswitch stops the stirrer when the lid is opened. At the lowest point of the bottom a 6/4'' ball valve is integrated for discharge.
Thanks to the timer (included) you can set different stirring intervals per day — ideal for producing creamed honey.
When using the stirrer the general beekeeping technique and the specific properties of the different honey types to be stirred should be observed. A good honey stirring machine must have features for efficient and gentle operation that do not agitate the honey excessively and, above all, do not incorporate air.
Optional accessories:
- Quick coupling with external thread 6/4'', Art. 7303
- Quick coupling with hose connection 6/4'', Art. 7304
- Suction hose 6/4'', inner Ø 40 mm, Art. 7308
- Elbow for suction hose Ø 40 mm, stainless steel, Art. 7331
- Honey tap 6/4'' with positioning nut, stainless steel, Art. 7739
Technical data:
INSULATED & HEATED (jacket and bottom) for even better results
Honey stirring and mixing machine for mixing and stirring up to 100 kg of honey. Also suitable for producing creamed honey.
The homogenizer consists of a stainless steel tank and a geared motor with stirrer. The tank is equipped on the outside with an electric heating cable. The tank temperature is adjustable (thermostatically controlled). This also allows the honey to be thawed in the tank.
Mixing is driven by a geared motor. On the motor shaft there are two pairs of opposing stirring paddles with a vacuum effect and an additional height-adjustable paddle. A safety microswitch stops the stirrer when the lid is opened. At the lowest point of the bottom a 6/4'' ball valve is integrated for discharge.
Thanks to the timer (included) you can set different stirring intervals per day — ideal for producing creamed honey.
When using the stirrer the general beekeeping technique and the specific properties of the different honey types to be stirred should be observed. A good honey stirring machine must have features for efficient and gentle operation that do not agitate the honey excessively and, above all, do not incorporate air.
Optional accessories:
- Quick coupling with external thread 6/4'', Art. 7303
- Quick coupling with hose connection 6/4'', Art. 7304
- Suction hose 6/4'', inner Ø 40 mm, Art. 7308
- Elbow for suction hose Ø 40 mm, stainless steel, Art. 7331
- Honey tap 6/4'' with positioning nut, stainless steel, Art. 7739
Technical data:
- Capacity: 100 kg (minimum fill approx. 20–30 kg)
- Geared motor: 230 V / 50 Hz, power 370 W; rotation speed: 28 rpm
- Heating: electric heating cable, heating power 700 W, thermostatically controlled
- Internal dimensions: diameter 40 cm, tank height 61 cm
- Outlet: 6/4'' ball valve at the lowest point
- Safety features: safety microswitch on opened lid, timer included
- Weight: 40 kg
- Type: Honey stirring and mixing machine 100 kg
- Material: stainless steel (food-grade) AISI 304
