Suitable for: Langstroth 1/1, Dadant (brood and honey chamber), Dadant (honey chamber), DNM/EHM (incl. shallow), Langstroth honey super, Swiss hive (brood and honey chamber), Swiss hive (honey chamber), Zander (incl. shallow), Austrian wide frame, Kuntzsch wide, Gerstung, ZaDant and many others – Maximum frame size: 30 x 48 cm.

NEW: Innovative honey extractor with integrated sieve pail that provides high stability during extraction!

ADVANTAGES of the new extractor with sieve pail:
- HIGH STABILITY DURING EXTRACTION: The weight of the honey in the sieve pail stabilises the extractor while filling and allows beekeepers to use higher rpms. This is the main advantage over conventional, unweighted extractors.
- TIME SAVING: Extraction and sieving in one step – a large portion of the honey already runs directly from the drum into the sieve pail.
- ECONOMICAL 3in1 SYSTEM enables multifunctional use:
  1. Extracting honey (extractor)
  2. Sieving honey (sieve)
  3. Storing and filling jars (sieve pail with optional airtight lid and stand)

Description:

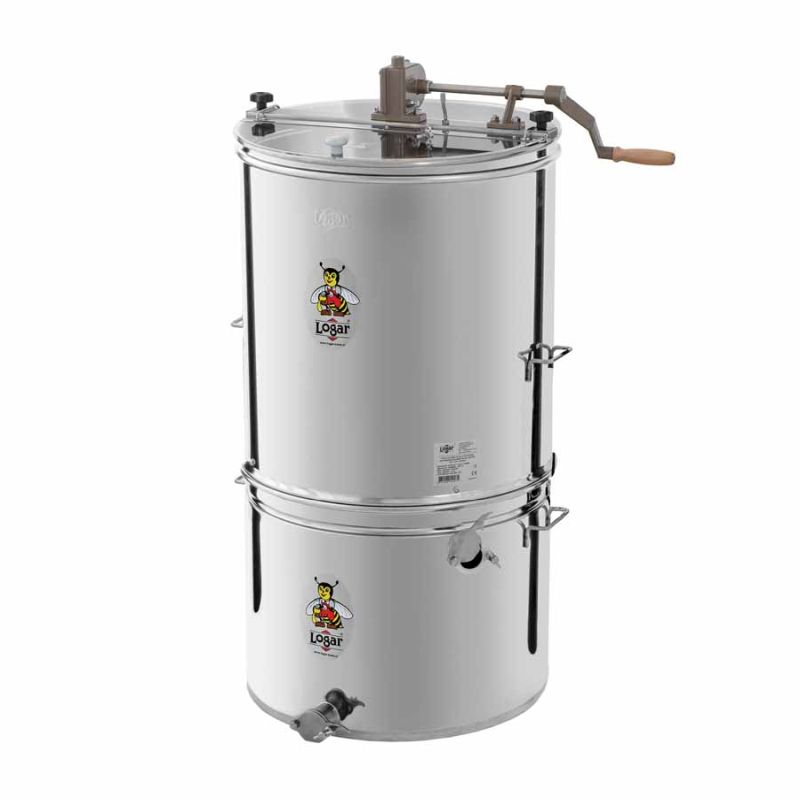

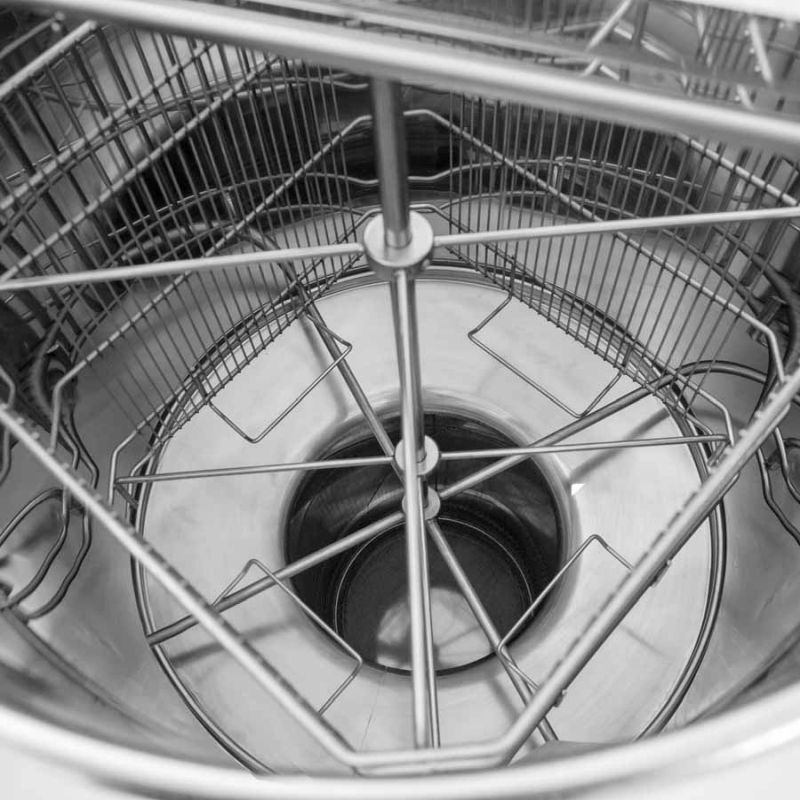

The 4-frame hand-crank extractor is supplied without a base and is placed directly on top of the sieve pail, then secured with an adjustable clamp ring. This prevents tipping and significantly increases stability during extraction. The honey spun from the frames flows directly into the sieve pail below.

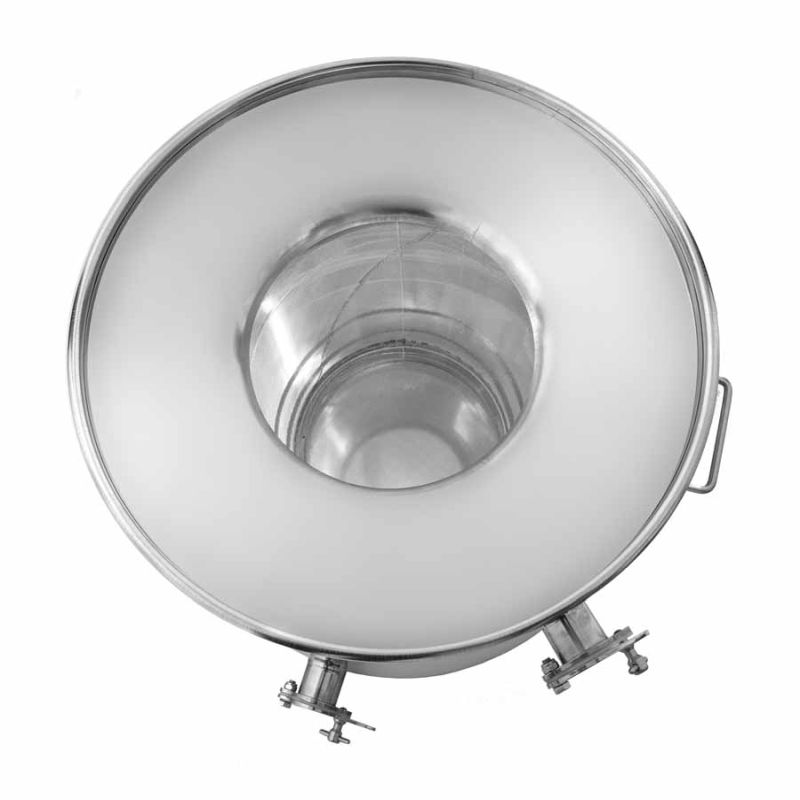

The sieve pail is primarily designed for sieving during the extraction process. Two stainless steel pinch taps are welded on: the upper pinch tap to discharge sieved honey into lower containers and the lower pinch tap to empty the pail. Inside the sieve pail is a fine sieve with large capacity and a drip ring. The honey level rises to the upper pinch tap and then flows into a bucket. A filled sieve pail allows continuous sieving; wax residues float to the surface and can be skimmed off easily. The sieve mesh does not clog even during all-day sieving. At the end the sieve pail is emptied via the lower pinch tap.

The sieve pail is also suitable for filling honey jars directly, as the pinch tap cuts the honey cleanly. To aid residual drainage, use of the stand is recommended. An airtight lid is available as an accessory. The extractor’s adjustable clamp ring can be used for airtight sealing.

Cleaning and materials:
Cleaning the extractor is simple. All honey-contact parts are made from food-grade materials. The lid is hinged and made from transparent acrylic so the extraction process can be observed.

Technical details:

• Type: LTR 4S
• Item no.: 4111
• Drive: Hand crank
• Number of frames (full/shallow): 4 / 8
• Maximum frame size: 30 x 48 cm
• Suitable for: Langstroth 1/1; Dadant (brood and honey chamber); Dadant (honey chamber); DNM / EHM (incl. shallow); Langstroth honey super; Swiss hive (brood and honey chamber and honey chamber); Zander (incl. shallow); Austrian wide frame; Kuntzsch wide; Gerstung; ZaDant; Type B and many more.
• Sieve pail mesh area: 30 x 41 cm
• Inner diameter (drum & sieve pail): 52 cm (outer 55 cm)
• Capacity: 100 kg
• Height of upper pinch tap: 28 cm
• Fine honey sieve: Fine stainless mesh MESCH 26, mesh size 0.71 mm
• Total height of extractor with sieve pail: 110 cm
• Extractor type: Tangential extractor
• Made in EU (Slovenia)
• Material: Stainless steel W.Nr. 1.4301 / AISI 304
• Warranty: 2 years

Optional accessories:
- Lid with gasket Ø 52 cm (Item 2440)
- Stand for container Ø 47 cm, stainless steel, disassembled (Item 2477)
- Wax and honey bucket 10 l with handle, stainless steel (Item 3772)
- Hanging pouch for uncapping wax (Item 7758)
