Suitable for: Langstroth 1/1, Langstroth honey super, Dadant (brood and honey box), DNM/EHM (including shallow), Zander (including shallow), Swiss hive (brood and honey box), Austrian wide frame, ZaDant, Type B and many more. Maximum frame size: up to 30 x 48 cm (height 30 cm, top-bar length 48 cm).

4-frame honey extractor with motor drive 110 W / 230 V and an integrated safety switch that automatically stops the motor when the lid is opened. State-of-the-art engineering allows an innovative design of the extractor tank bottom. The tank is seamlessly welded and angled toward the outlet. The stainless steel honey gate is welded at the lowest possible point so that all honey can drain from the extractor. Cleaning the extractor is easy. All parts that come into contact with honey are made from food-grade materials. The lid is fitted with special hinges and is made of transparent acrylic so you can observe the extraction process. The special foot construction ensures reliable stability of the extractor.

Allows extraction of frames up to a height of 30 cm and a top-bar length of 48 cm.

Warranty: 1 year

Optional accessories:
• By purchasing a special stirring rod with vacuum effect (Item no. 4703) the extractor can also be used to mix your feed syrup.
• A hanging bag for cappings wax (Item no. 7758) can be hung into the extractor basket so the honey easily drains from the wax cappings.
• Fitting rubber pads (Item no. 7754) to the extractor's feet reduces slipping.
• If 230 V is not available, the voltage inverter 12V DC–230V AC, 300 W (Item no. 4626) allows use of the extractor with a 12 V battery/accumulator.

As a Logar stainless steel extractor (manufactured in the EU / Slovenia), this model offers durable, food-grade materials and thoughtful construction for professional beekeepers and demanding hobbyists. The seamlessly welded tank, the low-mounted honey gate, and the transparent lid make operation and cleaning particularly convenient.

Technical data:

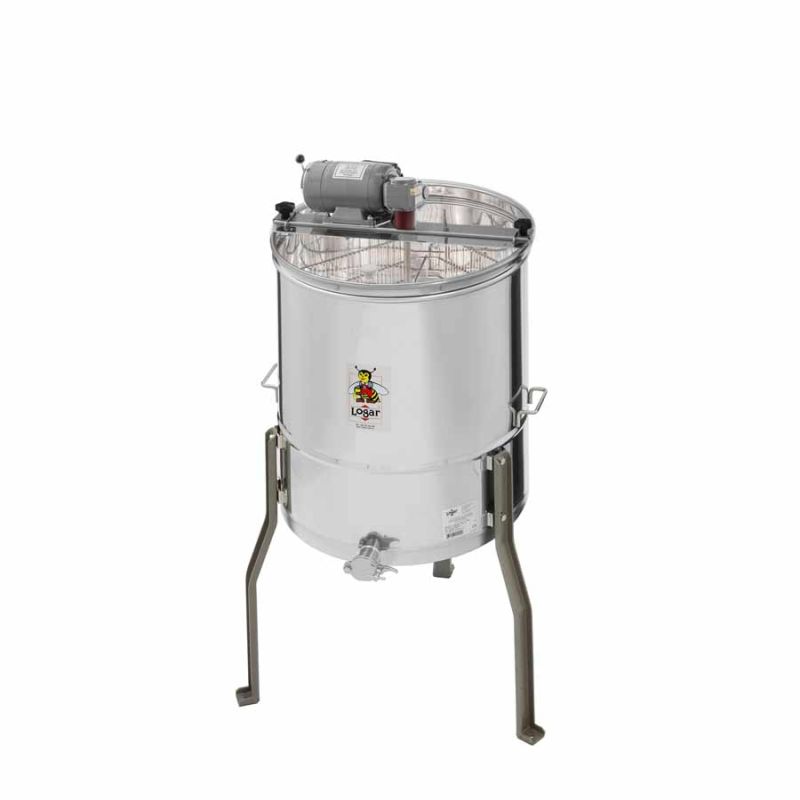

• Type: LTM 4S
• Item no.: 4104
• Suitable for: Langstroth 1/1, Langstroth honey super, Dadant (brood and honey box), DNM/EHM (incl. shallow), Zander (incl. shallow), Swiss hive (brood and honey box), Austrian wide frame, ZaDant, Type B and more.
• Maximum frame size: up to 30 x 48 cm (height 30 cm, top-bar length 48 cm)
• Number of frames (full/shallow): 4 / 8

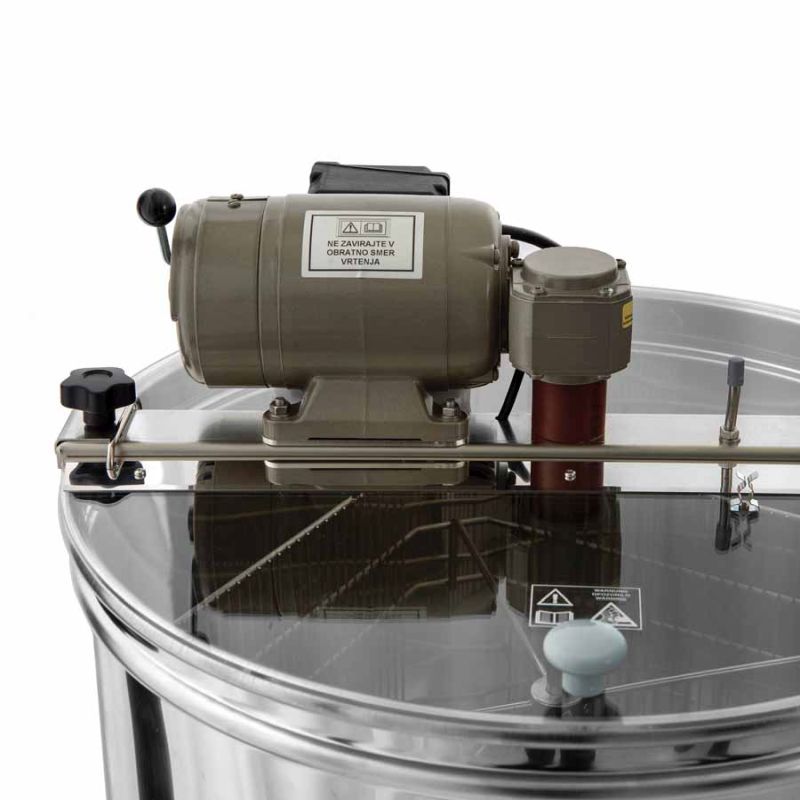

• Drive: Motor 110 W / 230 V with integrated safety cut-off (stops when lid is opened)
• Extractor type: Tangential extractor
• Tank diameter inside / outside: 52 / 55 cm

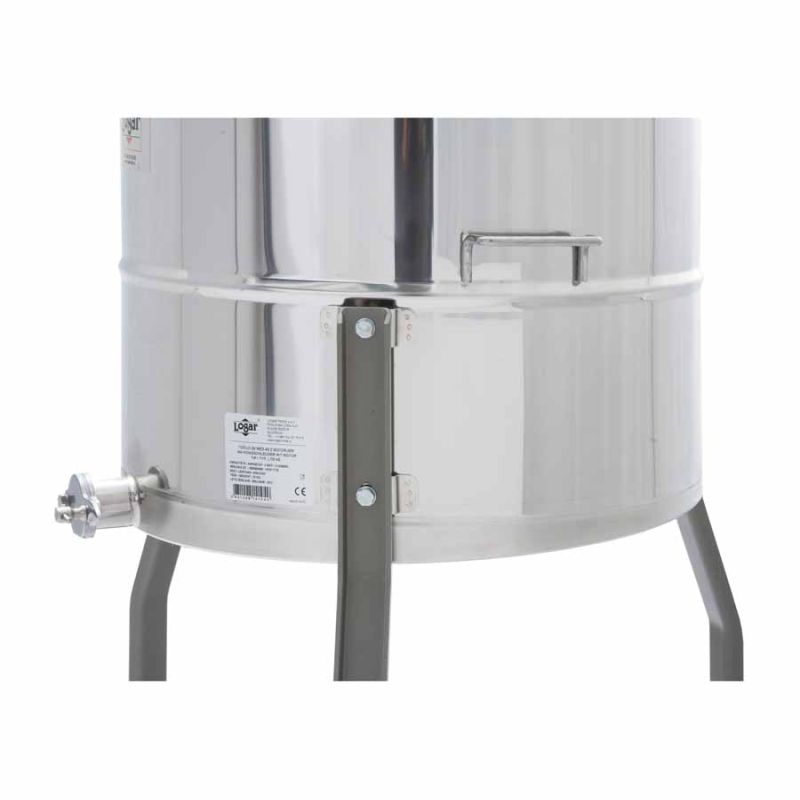

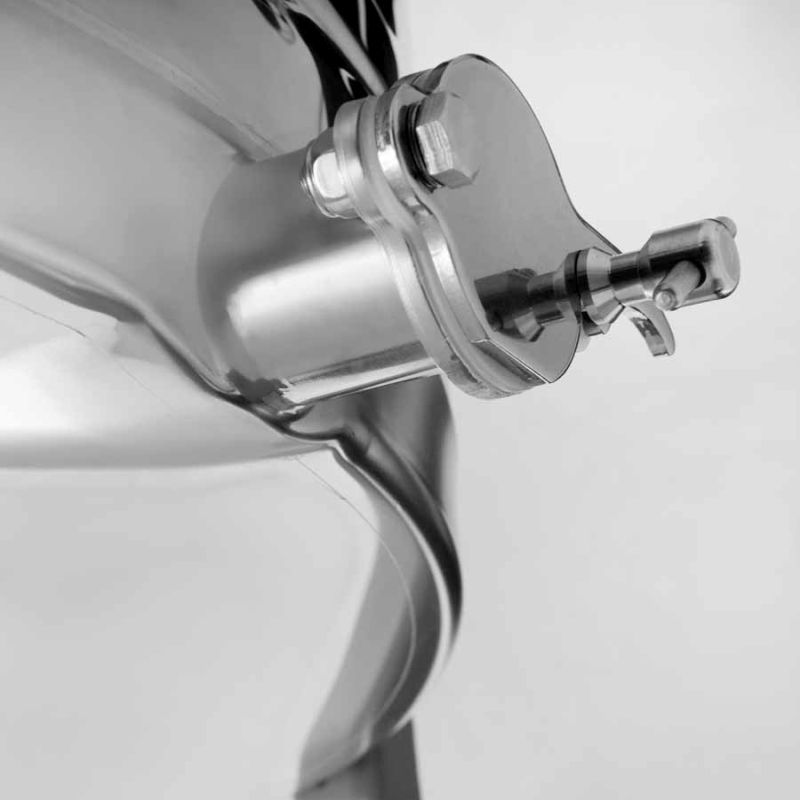

• Tank bottom: seamlessly welded and angled toward the honey gate; honey gate Ø 38 mm, welded at the lowest possible point
• Overall height with feet / with motor: 105 / 118 cm
• Tank height without / with motor: 64 / 76 cm
• Height from floor to honey gate: 41 cm
• Grid area: 30 x 41 cm

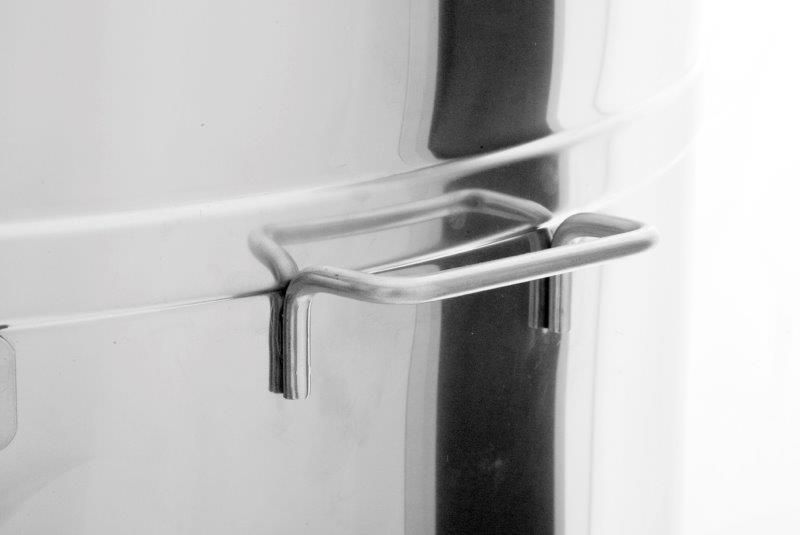

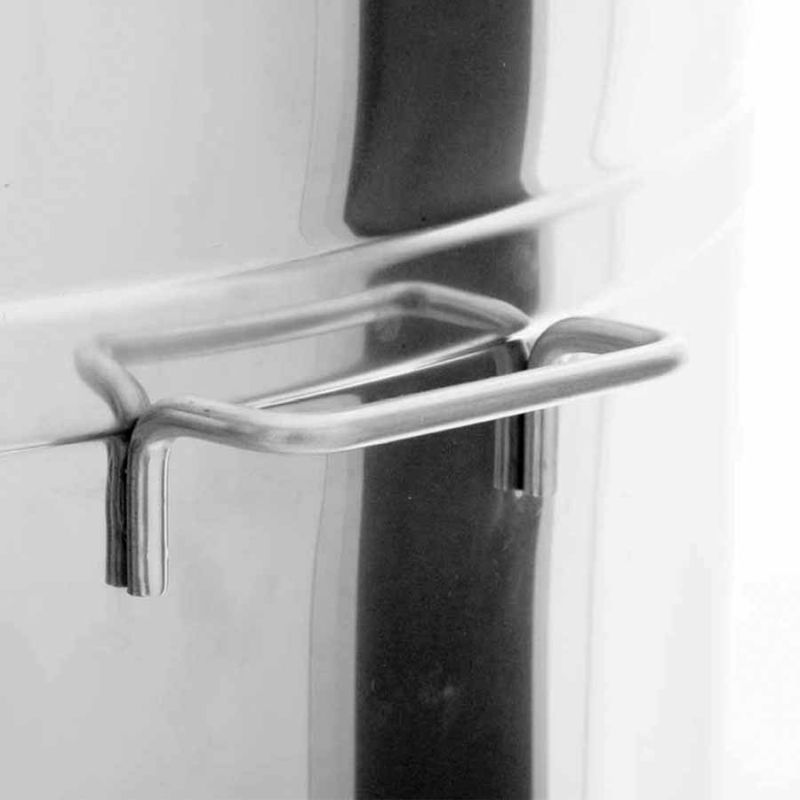

• Handles: two side handles
• Material: Stainless steel W.Nr. 1.4301 / AISI 304
• Manufactured in: EU (Slovenia)
• Packaging code: P-DE-tocilo, P-AT-tocilo, P-EU-tocilo, TOC
• Warranty: 1 year
