Description
Suitable for: Langstroth 1/1, DNM/EHM (including shallow), Langstroth honey super, Zander (including shallow), Austrian wide comb (Österreichische Breitwabe), Kuntzsch wide, Gerstung, and up to 6 frames up to a height of 11 cm. Maximum frame size: 26.5 x 48 cm.
The Logar tangential extractor with hand drive (Art. No. 4001) is a compact, robust stainless-steel honey extractor, ideal for hobby and small-scale beekeepers. With space for 3 frames (full or shallow) and a drum diameter of 40 cm, it delivers reliable performance and gentle honey extraction. The stainless-steel drum (AISI 304) ensures durability and easy cleaning. The extractor is made in the EU (Slovenia) and features a practical honey tap for easy filling.
Key features:

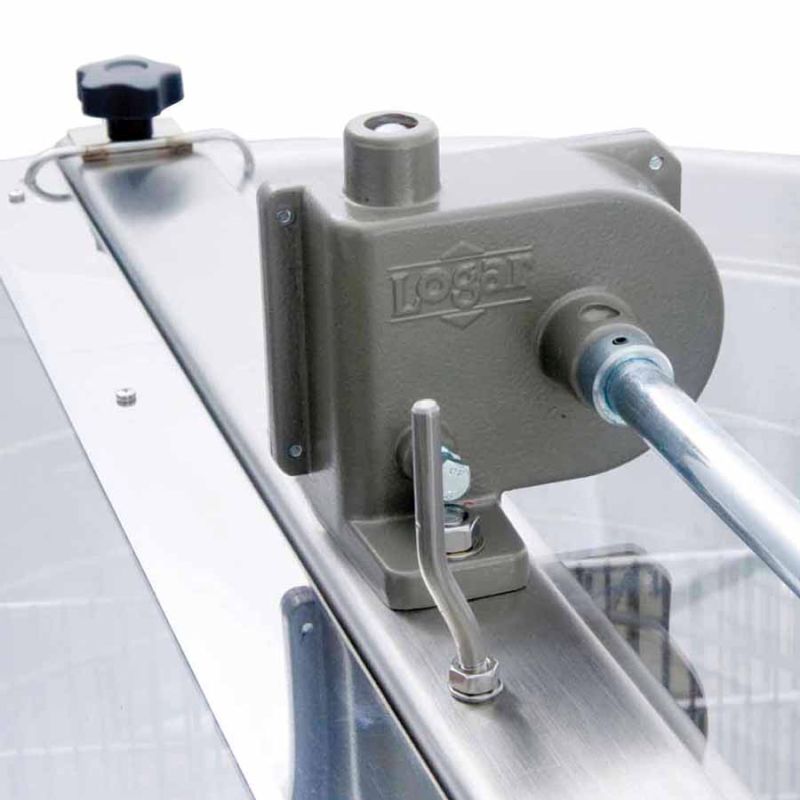

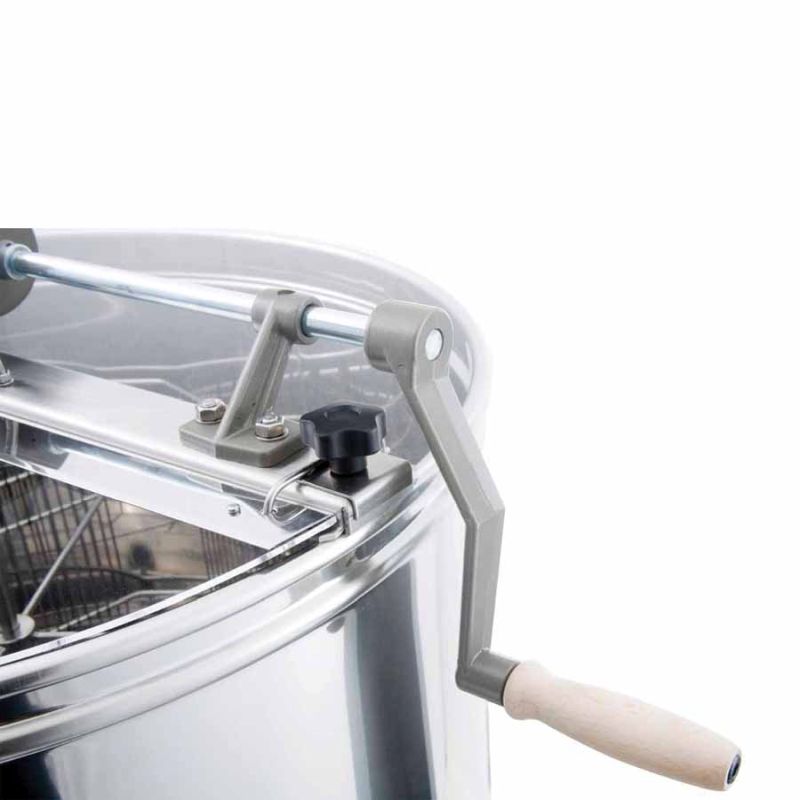

- Hand-driven mechanism for simple, controlled extraction
- Tangential design: proven construction for gentle uncapping and extraction
- Stainless-steel drum for hygiene and long service life
- Practical honey tap Ø 38 mm for quick filling
- Compact design, suitable for use in small operations
Technical data:
- Drive: Hand drive
- Number of frames: 3 full / 3 shallow (3/3)
- Maximum frame size: 26.5 x 48 cm
- Suitable for: Langstroth 1/1, DNM/EHM, DNM shallow/EHM shallow, Langstroth honey super, Zander, Zander shallow, Austrian wide comb, Kuntzsch wide, Gerstung and 6 frames up to a height of 11 cm
- Grating area: 26.5 x 41 cm
- Overall height: with feet 99 cm / with drive mechanism 110 cm
- Honey tap: 1 x Ø 38 mm
- Drum diameter: 40 cm (inside 40 cm / outside 43 cm)
- Extractor type: Tangential extractor
- Made in: EU (Slovenia)
- Material: Stainless steel W.Nr. 1.4301 / AISI 304
- Packaging code: TOC
- Art. No.: 4001
Technical data:
Drive = Hand drive
Drive = Hand drive
Number of frames (full/shallow) = 3/3
The maximum frame = 26.5 x 48 cm
Suitable for = Langstroth 1/1
Suitable for = DNM/EHM
Suitable for = DNM shallow/EHM shallow
Suitable for = Langstroth honey super
Suitable for = Zander
Suitable for = Zander shallow
Suitable for = etc.
Suitable for = and 6 frames up to a height of 11 cm
Suitable for = Austrian wide comb
Suitable for = Kuntzsch wide
Suitable for = Gerstung
Overall height with feet / with drive = 99 / 110 cm
Grating area = 26.5 x 41 cm
Honey taps / Ø = 1x Ø 38 mm
Made in = EU (Slovenia)
Drum diameter = 40 cm
Drum diameter - inside/outside = 40 / 43 cm
Material = Stainless steel W.Nr. 1.4301 / AISI 304
Extractor type = Tangential extractor
Packaging code = TOC
