Suitable for: honey extractors with a bottom Ø of 76 cm. This base heater is specially designed for installation on extractors with a 76 cm bottom diameter and makes multi-day extraction and cleaning easier by improving honey flow and reducing crystallization.

We can have the base heater professionally installed on our honey extractor already during the production phase.

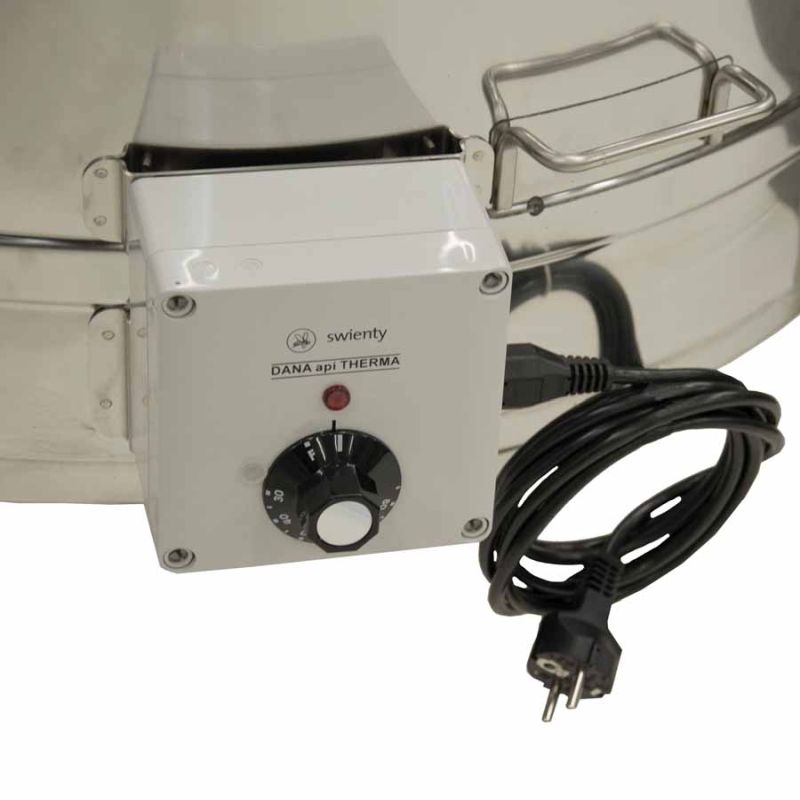

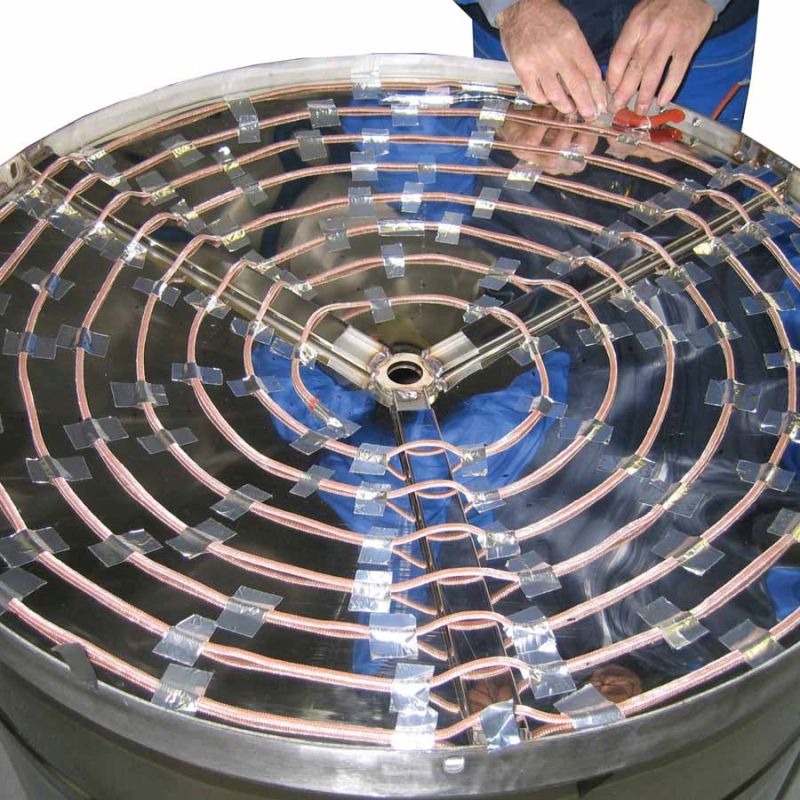

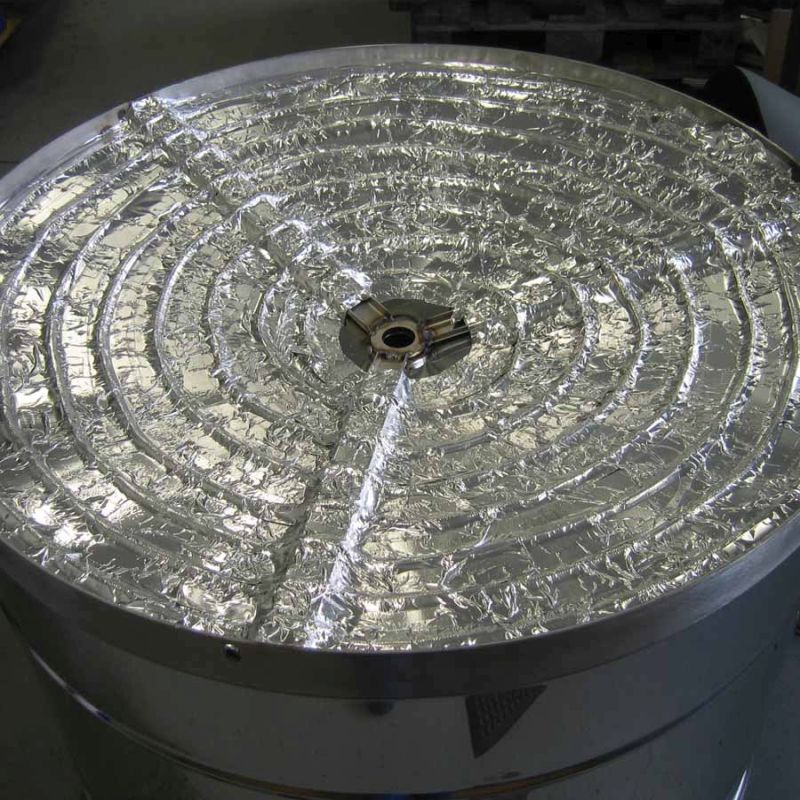

The terminal box is mounted directly to the drum. The heating cable is installed under the extractor floor, insulated with insulating foam and protected by a stainless steel sheet. The supplied temperature sensor controls the temperature to prevent overheating.

We recommend installing a base heater, as it will be a great help during multi-day extraction and when cleaning the honey extractor. When you extract for many days, crystals form and the extractor can gradually become clogged — the crystallization problems are reduced. With a warmed base, honey flows out of the extractor more quickly and also passes through the sieves faster.

Key benefits at a glance:
- Better honey flow and faster drainage
- Reduction of crystallization during multi-day extraction
- Easier cleaning of the extractor
- Thermostat with temperature sensor prevents overheating

Technical data and notes:

• Type: Base heater Ø 76 cm
• Art. No.: 7125
• Suitable for: honey extractors with a bottom Ø of 76 cm
• Power: 500 W / 230 V
• Temperature range: 30 – 85 °C
• Installation: Professional installation possible already during production; heating cable mounted under the extractor floor
• Construction/Protection: Terminal box on the drum, insulating foam under the floor, protection by stainless steel sheet
• Scope of delivery: Base heater with heating cable, temperature sensor (thermostat) and mounting materials
