Suitable for: Langstroth 1/1, Dadant (honey super, Blatt), DNM/EHM (full and shallow), Zander (full and shallow), Swiss-frame honey super and many more. Maximum frame height: 14–21 cm (up to 24 cm with 12 frames); top-bar length up to 48 cm.

Capacity: 24 frames up to a height of 14–21 cm or 12 frames up to a height of 24 cm
Drive: motor 110 W / 230 V
Inner diameter of the drum: 76 cm

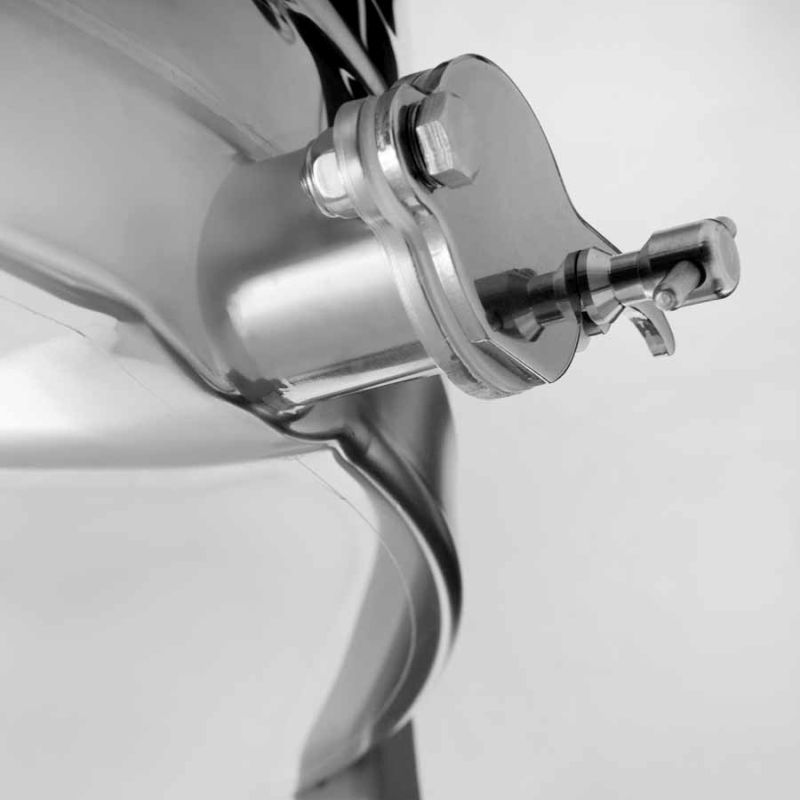

24/12-frame Logar radial honey extractor with 110 W / 230 V motor drive and safety switch that automatically cuts power to the motor when the lid is opened. The control lever allows stepless adjustment of the speed from 0 to 280 rpm and selection of clockwise or counter-clockwise rotation. State-of-the-art engineering enables an innovative design of the extractor bottom. The drum bottom is seamlessly welded and sloped towards the outlet. The extractor is fitted with two stainless steel pinch valves 6/4"; one valve is installed at the lowest possible point so that all honey can drain from the extractor. All parts that come into contact with honey are made from food-grade materials. The lid is made of transparent acrylic.

When extracting, frames do not need to be turned over in the extractor because centrifugal force together with the natural slope of the cells ensures that both sides of the frames are emptied simultaneously.

Allows extraction of 24 frames (height 14–21 cm) or 12 frames (height up to 24 cm) with top-bar length up to 48 cm.

Warranty: 1 year

Optional accessories:

• If 230 V is not available, the voltage converter Art. No. 4626 (12 V DC → 230 V AC, 300 W) allows use of the extractor with a 12 V battery / accumulator.
• We recommend the extractor floor heater (Art. No. 7125) — useful for multi-day extracting and cleaning; a warmed bottom lets the honey flow faster and makes sieving easier.

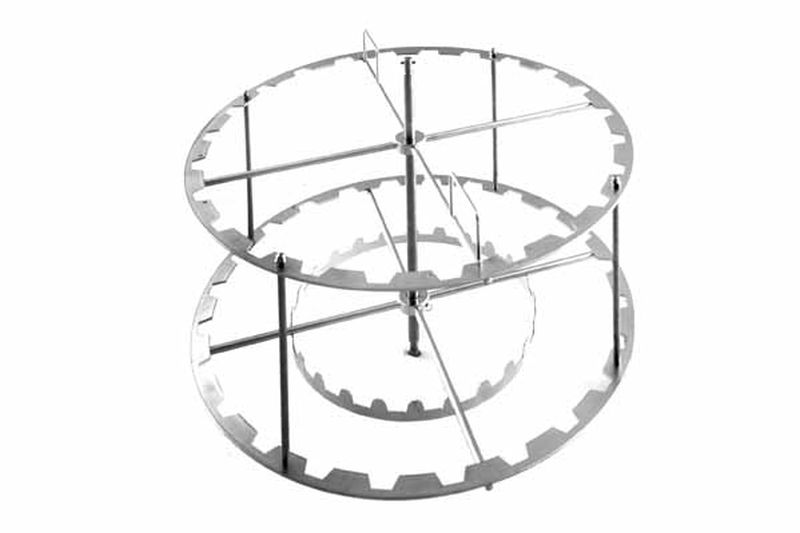

• The radial extraction basket can be converted to a tangential basket by fitting four additional hanging grids for tangential operation (Art. No. 7761). This allows extracting four large frames up to a height of 30 cm. In this configuration a cappings collection pocket (Art. No. 7758) can be used so honey drains easily from the cappings.
• Rubber pads for the feet (Art. No. 7769) reduce slipping of the extractor.
• Floor heater for extractor Ø 76 cm including installation — our recommendation for faster honey drainage and easier cleaning (Art. No. 7125).

Technical data:

• Type: LTM 24SR
• Material: Stainless steel grade W.Nr. 1.4301 / AISI 304
• Drive: Motor 110 W / 230 V with safety switch; stepless control 0–280 rpm; reversible (clockwise / counter-clockwise)
• Number of frames (full / shallow): 12 / 24
• Maximum frame height: up to 21 cm (with 24 frames), up to 24 cm (with 12 frames); top-bar length up to 48 cm
• Suitable for: Langstroth 1/1, Langstroth honey super, Dadant honey super, Dadant Blatt honey super, DNM/EHM (full & shallow), Zander (full & shallow), Swiss-frame honey super, etc.
• Drum diameter (inside / outside): 76 / 79 cm
• Drum height without / with drive unit: 73 / 86 cm; total height with feet / with drive unit: 112 / 125 cm
• Height from floor to honey valve: 39 cm; honey valve welded at the lowest possible point
• Bottom: seamlessly welded and sloped toward the pinch valve

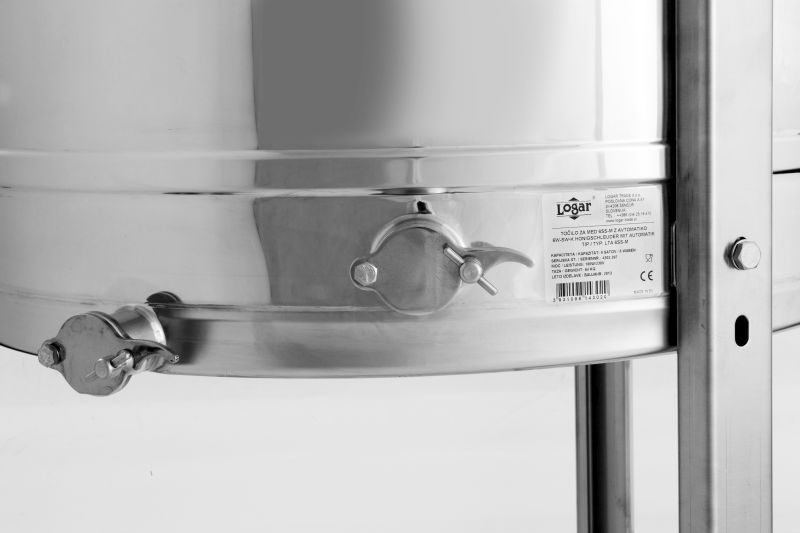

• Honey outlets: 2 x pinch valves 6/4" (Ø 38 mm + Ø 42 mm)

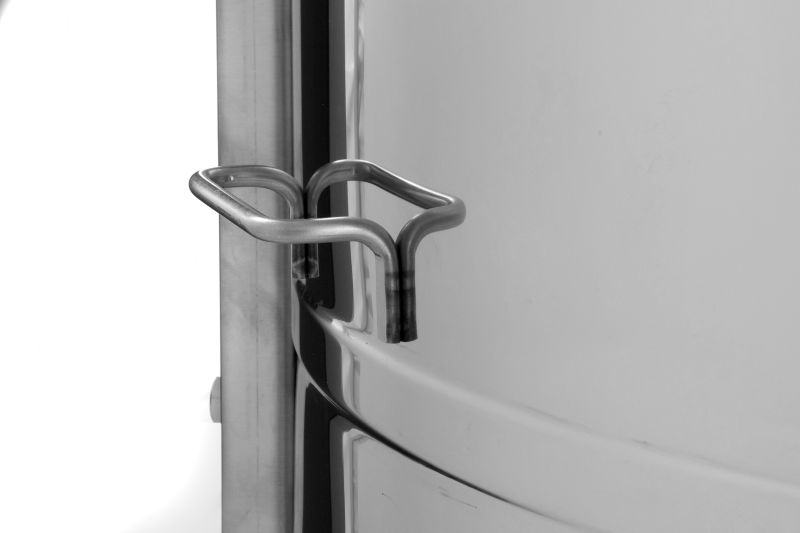

• Handles: two side handles
• Extractor type: radial extractor
• Made in the EU (Slovenia)
• Warranty: 1 year
